Because the bottom of the pipe is filled with antifreeze for thermal mass, it cools more slowly.
Next
Prev

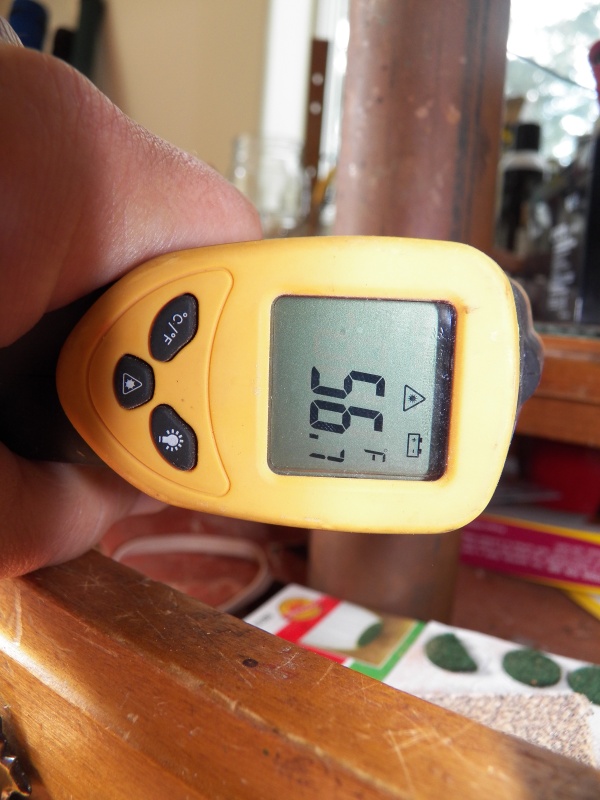

In an hour, I have frost over the entire exterior of the copper tube. Surprisingly, the copper pipe could frost when the antifreeze seemed to be at about 45 degrees. A couple more hours (at 3.5 amp hours) would likely get the entire thermal mass below freezing. My antifreeze mixture freezes below -25F, so I don't think that I need to worry about bursting the copper pipe.
By 11:03 I have frost at the top of the copper tube. The towel actually froze to the copper pipe, so I'll have to keep produce away from it when the cooler is complete.
In order to get a better understanding of the cooling potential, I put it in a beer cozy and wrapped a dish towel around it to insulate the copper pipe. (The fan next to it is heat operated and is the opposite of the cooling process that I am using.) It is 10:43 and I am starting out at 65 degrees.
Because the bottom of the pipe is filled with antifreeze for thermal mass, it cools more slowly.
The cold side of the chip quickly cools the copper pipe.
The "hot" air that passes the cooling fins is about 75-77 degrees. The fan is .27 amps and moves a lot of air. I tried a quieter fan, but it didn't cool the hot side of the TEC as effectively, which is the key to getting the maximum cooling efficiency from a TEC.
It is about 65 degrees in my shop.
Next
M

Because the bottom of the pipe is filled with antifreeze for thermal mass, it cools more slowly.

Because the bottom of the pipe is filled with antifreeze for thermal mass, it cools more slowly.
Click to expand...
There are no comments to display.

Media information

Category
Refrigeration
Album
This is a thermo-electric chip (TEC) with an air cooled copper heat sink salvaged from a computer on top and a length of 1.5" copper pipe filled with antifreeze on the bottom. It is stuck together with thermal epoxy.
