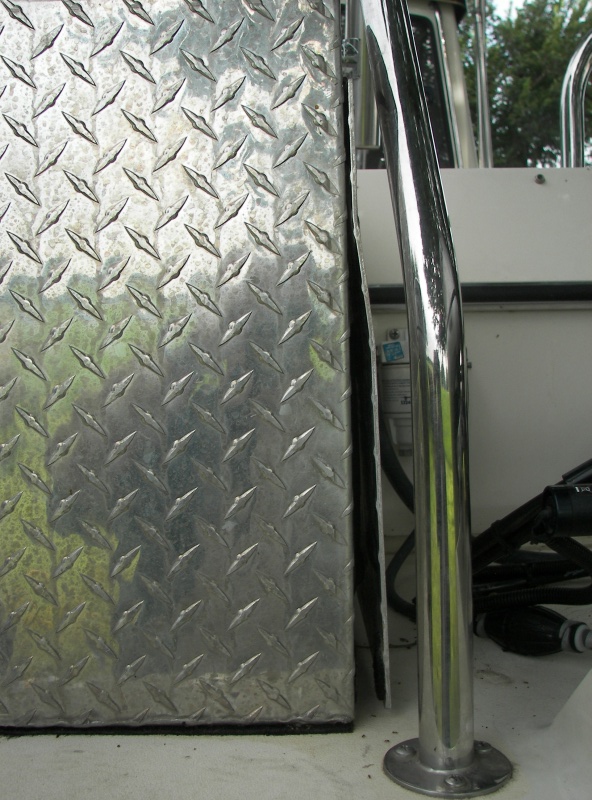

Barely room to slide a 24 inch box between the swimstep handles, so I put a huge aluminum, hinged flap on the exhaust side.
Next
Prev
Without cutting openings, the box will hold a Honda i2000 and four, one gallon fuel tanks. I know about and have an extended run tank, but this works better for me now. You have to put the genset in exhaust first, vertically, then slide it to the left and drop front end down. This does not seem to spill oil, although sideways tilting will.
Purchased at Tractor Supply, the 24 inch, underbody box was made by Delta: Model No. 407210.
Everybodys' dream! A Tractor Supply box on your C-Dory!
Barely room to slide a 24 inch box between the swimstep handles, so I put a huge aluminum, hinged flap on the exhaust side.
This is the most extreme cut-out you'd need and I still had very little seawater intrusion. I had to allow for the genset to slide this way for the 30 amp yoke to clear the restricted lid opening.
This allows variable opening. A larger hole had to be cut to get the 30 amp plug frame into the box. A simple i2000 would not need such a large cutout. West Marine sells a nice 7 inch SS cowl vent that would work if installed after the box is slid in place. I had no problem with salt water intrusion, had drain holes and a series of screened vents up against the transom down low for fuel vapor run-off.
This is where I plug in the boat's shorepower, twist-lock plug. The flap protects from rain.
