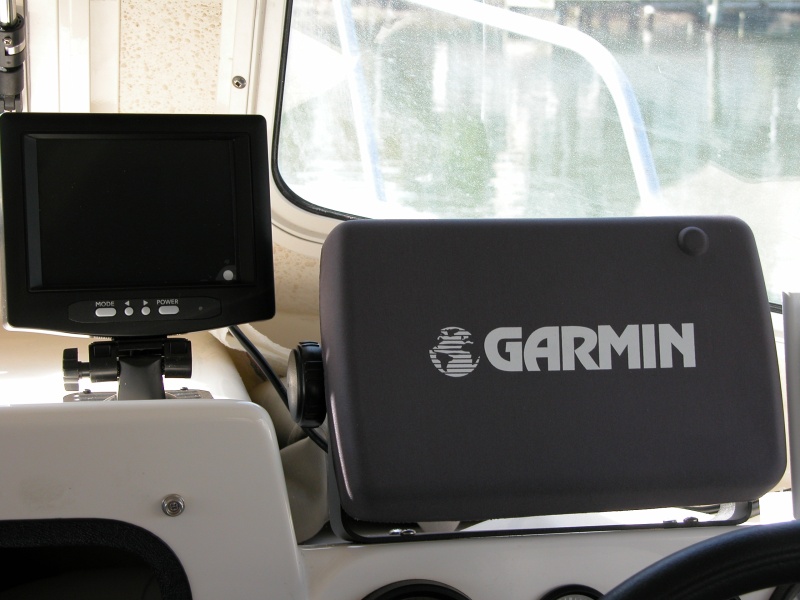

Backup system LCD color monitor beside GARMIN 2006C. Audio from camera mic is fed to monitor.
Next
Prev
This relocation will save me from another $184.00 plus S/H bill. This location makes it much easier to scan my situation and to juggle the twin throttles while backing into the slips. The camera has all but eliminated the blind spot behind helm caused by the head's particians. This also has improved my scanning efficiency.

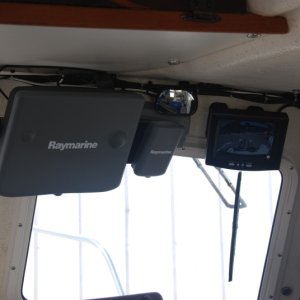

AFTER getting the original monitor wet from spray thru the center windshield,(I left the protective plactic cover off)it was time to move it to a drier location to the right of the C80's Alphanumeric Keypad -above the windshield. The replacement came from 'RVCams.com'.
LCD Backup Camera above cabin door. The small 'black dot' to the left of the lense is the mic pickup. I use the mic to monitor the cockpit crew for docking or other feedback.
Backup system LCD color monitor beside GARMIN 2006C. Audio from camera mic is fed to monitor.
View underway on Linkhorn Bay, Va. Beach, VA.
CCD camera above the cabin door. Horizontal field of view = 90 deg., vert. field of view = 20 deg.. It has a built in mic within the camera head body. Volume can be muted or controlled at the monitor under the 'MODE' function - very handy when running with the door closed. The wedge is a cedar shingle cut to provide the necessary vert. angular range for the bracket supplied. A single multiconductor small cable is fed straight into the cabin and routed along the port side wiring harness directly to the monitor, where the camera also gets its power.

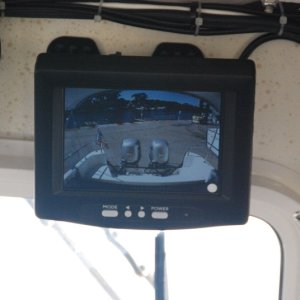

5.7" LCD color monitor system to view the blind spot areas behind the helm, through head window area, and also allows you to listen for anything going on in the cockpit area.
