shelf was added back lower and the grill storage was in danger of hitting valve, so a wood bracket was added to prevent that so I made a graphic for it to make valve operation more intuitive. more pics to come showing it in place

shelf was added back lower and the grill storage was in danger of hitting valve, so a wood bracket was added to prevent that so I made a graphic for it to make valve operation more intuitive. more pics to come showing it in place

  • Reaction score 0
  • Comments 0
batten down everything to keep from pounding... allthread and fender washers underneath also

batten down everything to keep from pounding... allthread and fender washers underneath also

  • Reaction score 0
  • Comments 0
2X2 battery frame with allthread and fender washers underneath

2X2 battery frame with allthread and fender washers underneath

  • Reaction score 0
  • Comments 0
ready to add floor with battery holder

ready to add floor with battery holder

  • Reaction score 0
  • Comments 0
The House battery was not strapped down... rather it was sitting on the bottom ledge of the Galley and leaned against the shelf. First thing was to make a support for a 3/4\" marine ply floor, fiberglassed, glued and screwed in place for support

The House battery was not strapped down... rather it was sitting on the bottom ledge of the Galley and leaned against the shelf. First thing was to make a support for a 3/4\" marine ply floor, fiberglassed, glued and screwed in place for support

  • Reaction score 0
  • Comments 0
layers of glass and epoxy followed by epoxy paint (light coat on the inside of the drain as well)

layers of glass and epoxy followed by epoxy paint (light coat on the inside of the drain as well)

  • Reaction score 0
  • Comments 0
a shim of treated wood raised the bottom of the locker to at least the level of the drain

a shim of treated wood raised the bottom of the locker to at least the level of the drain

  • Reaction score 0
  • Comments 0
after cleaning the bilge with bleach and Jo Max I took a break and came back to find this puddle that had seeped from the anchor locker aft to the V-berth (the boat was on trailer with bow elevated)

after cleaning the bilge with bleach and Jo Max I took a break and came back to find this puddle that had seeped from the anchor locker aft to the V-berth (the boat was on trailer with bow elevated)

  • Reaction score 0
  • Comments 0
on deck with 5200 and countersunk screws - there to stay (hopefully)

on deck with 5200 and countersunk screws - there to stay (hopefully)

  • Reaction score 0
  • Comments 0

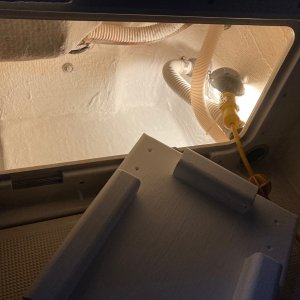

3/4 Marine Ply w/ 2X2 railings and double straps

3/4 Marine Ply w/ 2X2 railings and double straps

  • Reaction score 0
  • Comments 0
corner complete - now for heavy duty battery support

corner complete - now for heavy duty battery support

  • Reaction score 0
  • Comments 0
multiple hand laid heavy duty fiberglass - West Systems Epoxy

multiple hand laid heavy duty fiberglass - West Systems Epoxy

  • Reaction score 0
  • Comments 0

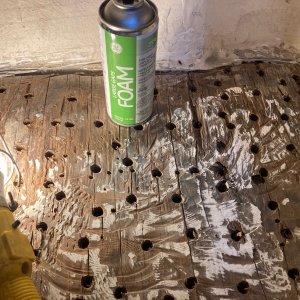

fill void with expanding foam (anti mildew also) - trim excess

fill void with expanding foam (anti mildew also) - trim excess

  • Reaction score 0
  • Comments 0

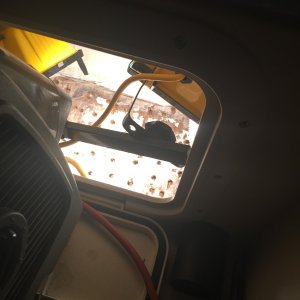

Blower and Floodlights 24/7 through some of the driest weather we\'ve experienced... LUCKY!

Blower and Floodlights 24/7 through some of the driest weather we\'ve experienced... LUCKY!

  • Reaction score 0
  • Comments 0
shop vac then through tubes inserted in grid of holes

shop vac then through tubes inserted in grid of holes

  • Reaction score 0
  • Comments 0

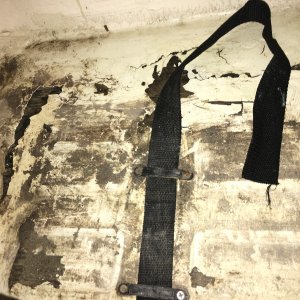

It could be peeled by hand in places - wood saturated

It could be peeled by hand in places - wood saturated

  • Reaction score 0
  • Comments 0

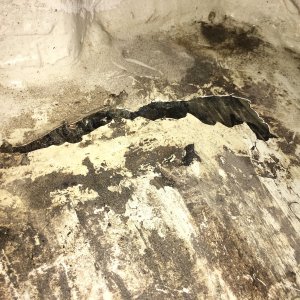

weight of battery had fatigued fiberglass which de-laminated

weight of battery had fatigued fiberglass which de-laminated

  • Reaction score 0
  • Comments 0
multimediasmith

weight of battery had fatigued fiberglass which de-laminated
