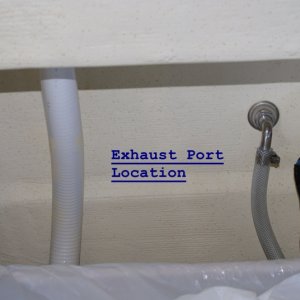

Wallas 1300 Install - DSC06180. Intake/exhaust installed. The heater warms the cabin nicely, whichever way the seats and table are configured. The louvers on the vent can be turned to direct heat at the First Mate's feet, whichever seat she is in. Ducting could be added.

Wallas 1300 Install - DSC06180. Intake/exhaust installed. The heater warms the cabin nicely, whichever way the seats and table are configured. The louvers on the vent can be turned to direct heat at the First Mate's feet, whichever seat she is in. Ducting could be added.

  • Media owner NORO LIM
  • Date added Mar 19, 2014
  • Reaction score 0
  • Comments 1

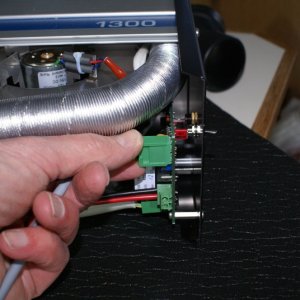

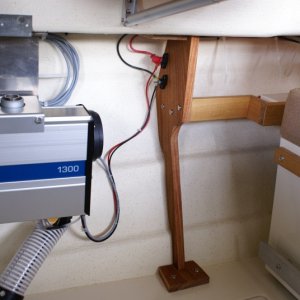

Wallas 1300 Install -DSC06175. Wires connected. (Note the extra right angle brace at the top of the hanger bracket. Just a suspenders and belt move to make sure the heater stays put.)

Wallas 1300 Install -DSC06175. Wires connected. (Note the extra right angle brace at the top of the hanger bracket. Just a suspenders and belt move to make sure the heater stays put.)

  • Media owner NORO LIM
  • Date added Mar 10, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install -DSC06174. New shelf support in place.

Wallas 1300 Install -DSC06174. New shelf support in place.

  • Media owner NORO LIM
  • Date added Mar 10, 2014
  • Reaction score 0
  • Comments 0

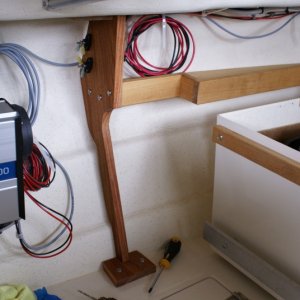

Wallas 1300 Install -DSC06171. New shelving support assembled with power line connectors mounted.

Wallas 1300 Install -DSC06171. New shelving support assembled with power line connectors mounted.

  • Media owner NORO LIM
  • Date added Mar 10, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install -DSC06165. Pieces cut for rebuilding the forward part of the shelving.

Wallas 1300 Install -DSC06165. Pieces cut for rebuilding the forward part of the shelving.

  • Media owner NORO LIM
  • Date added Mar 10, 2014
  • Reaction score 0
  • Comments 1
Wallas 1300 Install -DSC06163 - Protection against inadvertently bumping the switch on or off made from a small scrap of 1/2" starboard

Wallas 1300 Install -DSC06163 - Protection against inadvertently bumping the switch on or off made from a small scrap of 1/2" starboard

  • Media owner NORO LIM
  • Date added Feb 20, 2014
  • Reaction score 0
  • Comments 0

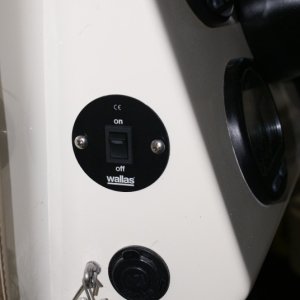

Wallas 1300 Install -DSC06159 Remote switch is mounted on the side of the helm where it is easy to reach from the helm seat, First Mate's seat, or v-berth.

Wallas 1300 Install -DSC06159 Remote switch is mounted on the side of the helm where it is easy to reach from the helm seat, First Mate's seat, or v-berth.

  • Media owner NORO LIM
  • Date added Feb 20, 2014
  • Reaction score 0
  • Comments 0

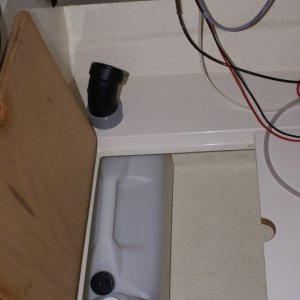

Wallas 1300 Install -DSC06158. Ten liter Fuel tank in place. Two extra fuel jugs will just fit in next to it (one is visible - with white cap). Tie down straps to be installed.

Wallas 1300 Install -DSC06158. Ten liter Fuel tank in place. Two extra fuel jugs will just fit in next to it (one is visible - with white cap). Tie down straps to be installed.

  • Media owner NORO LIM
  • Date added Feb 20, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install -DSC06156 Remote switch connection to heater

Wallas 1300 Install -DSC06156 Remote switch connection to heater

  • Media owner NORO LIM
  • Date added Feb 20, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06155 Ready for wiring, fuel lines, and intake/exhaust.

Wallas 1300 Install - DSC06155 Ready for wiring, fuel lines, and intake/exhaust.

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06154 It fits.

Wallas 1300 Install - DSC06154 It fits.

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06150

Wallas 1300 Install - DSC06150

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06149

Wallas 1300 Install - DSC06149

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06148

Wallas 1300 Install - DSC06148

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06145

Wallas 1300 Install - DSC06145

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0

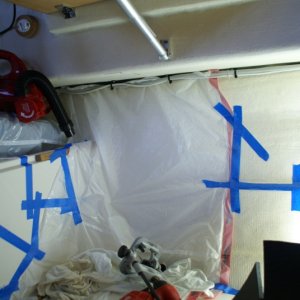

Wallas 1300 Install - DSC06143 Ready to start drilling

Wallas 1300 Install - DSC06143 Ready to start drilling

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0

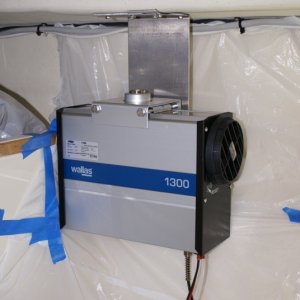

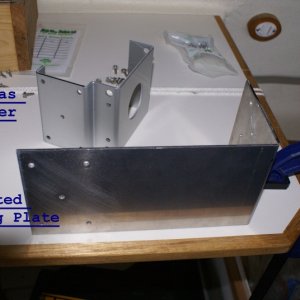

Wallas 1300 Install - DSC06142 Made an "L" shaped bracket and drilled it to match the Wallas hanger. Will allow mounting in a tight spot between the hull and the lowered table, with just enough clearance above for the intake/exhaust, and just enough below for the fuel and return lines.

Wallas 1300 Install - DSC06142 Made an "L" shaped bracket and drilled it to match the Wallas hanger. Will allow mounting in a tight spot between the hull and the lowered table, with just enough clearance above for the intake/exhaust, and just enough below for the fuel and return lines.

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06140

Wallas 1300 Install - DSC06140

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06139

Wallas 1300 Install - DSC06139

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0

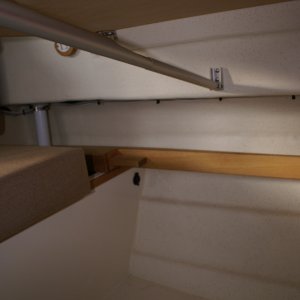

Wallas 1300 Install - DSC06133 - 12V socket and table latch will also have to be moved.

Wallas 1300 Install - DSC06133 - 12V socket and table latch will also have to be moved.

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0

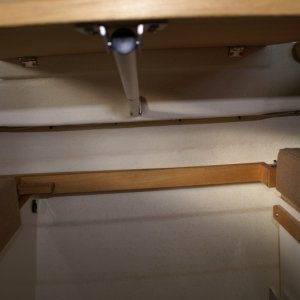

Wallas 1300 Install - DSC06132 Checked and rechecked clearances. It will be tight. Checked with SCAN Marine who assured me mounting the heater like this would be fine.

Wallas 1300 Install - DSC06132 Checked and rechecked clearances. It will be tight. Checked with SCAN Marine who assured me mounting the heater like this would be fine.

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0
Wallas 1300 Install - DSC06131

Wallas 1300 Install - DSC06131

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0

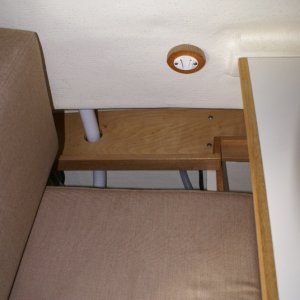

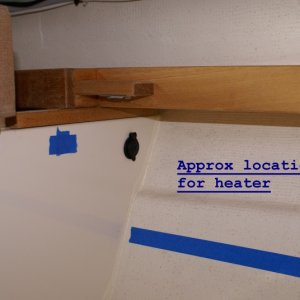

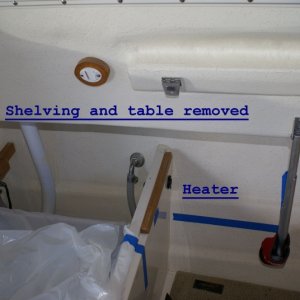

Wallas 1300 Install - DSC06130 View below the raised table. Shelving will be removed here, and the outboard edge of the forward seat cushion (shown on the right) will be trimmed by about 1/2 inch to allow the table to hang just slightly further away from the hull to make room for the heater.

Wallas 1300 Install - DSC06130 View below the raised table. Shelving will be removed here, and the outboard edge of the forward seat cushion (shown on the right) will be trimmed by about 1/2 inch to allow the table to hang just slightly further away from the hull to make room for the heater.

  • Media owner NORO LIM
  • Date added Feb 17, 2014
  • Reaction score 0
  • Comments 0

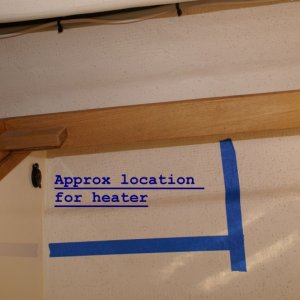

Wallas 1300 Install - - DSC06129 Aft seat, shelving, & table; Heater to go where the shelving narrows - next to, and just forward of the aft seat. Chose the Wallas 1300 model because it's the most compact, and because I already had a kerosene stove.
