AC Power Panel cover_'d' view.

AC Power Panel cover_'d' view.

  • Media owner Sea Angel
  • Date added Oct 12, 2007
  • Reaction score 0
  • Comments 0
AC Power Panel cover_'c' view. I allowed about 1/16" clearence between the plexiglass and the overall spacing between the slides to permit bending of the f'glass for installation.

AC Power Panel cover_'c' view. I allowed about 1/16" clearence between the plexiglass and the overall spacing between the slides to permit bending of the f'glass for installation.

  • Media owner Sea Angel
  • Date added Oct 12, 2007
  • Reaction score 0
  • Comments 0
AC Power Panel cover_'b' view. Plexiglass height was chosen for: lower slide to be as high as possible to allow door under carpet to open as far as possible, not to have slide cover any part of the power panel and keeping the bottom circuit breaker blank space clear for a future addition.

AC Power Panel cover_'b' view. Plexiglass height was chosen for: lower slide to be as high as possible to allow door under carpet to open as far as possible, not to have slide cover any part of the power panel and keeping the bottom circuit breaker blank space clear for a future addition.

  • Media owner Sea Angel
  • Date added Oct 12, 2007
  • Reaction score 0
  • Comments 0
AC Power Panel cover_'a' view. Top guide base had to be hand notched for table top support mounting bolt. Top was placed abt 1/16" above bottom edge to allow enough support when mounting screw hole was pre-drilled.

AC Power Panel cover_'a' view. Top guide base had to be hand notched for table top support mounting bolt. Top was placed abt 1/16" above bottom edge to allow enough support when mounting screw hole was pre-drilled.

  • Media owner Sea Angel
  • Date added Oct 12, 2007
  • Reaction score 0
  • Comments 0
AC POWER PANEL COVER completed

AC POWER PANEL COVER completed

  • Media owner Sea Angel
  • Date added Oct 12, 2007
  • Reaction score 0
  • Comments 0

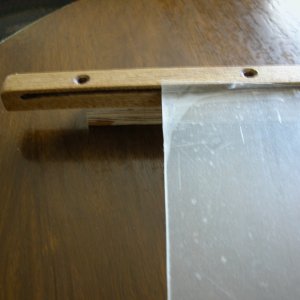

Top support guide resting on a 3/4" temp. spacer to simulate the cabin setup.

Top support guide resting on a 3/4" temp. spacer to simulate the cabin setup.

  • Media owner Sea Angel
  • Date added Oct 9, 2007
  • Reaction score 0
  • Comments 0
The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.

The guides for the plexiglass stop abt 1/2" from each end of the 9" guides. The above pix is the bottom support guide.

  • Media owner Sea Angel
  • Date added Oct 9, 2007
  • Reaction score 0
  • Comments 0

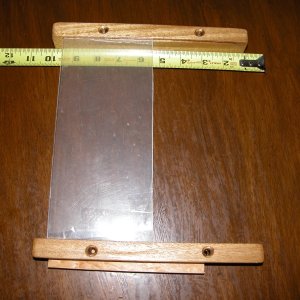

Small piece of wood under lower guide is a tempory spacer for these pixs. It represents the table support above the AC power panel which is also 3/4" thick.

Small piece of wood under lower guide is a tempory spacer for these pixs. It represents the table support above the AC power panel which is also 3/4" thick.

  • Media owner Sea Angel
  • Date added Oct 9, 2007
  • Reaction score 0
  • Comments 0
Top view of top guide. Side view of bottom guide which are 2 - 3/4"pieces glued together for the 1 1/2" height needed to clear the breaker switches.

Top view of top guide. Side view of bottom guide which are 2 - 3/4"pieces glued together for the 1 1/2" height needed to clear the breaker switches.

  • Media owner Sea Angel
  • Date added Oct 9, 2007
  • Reaction score 0
  • Comments 0
Side view of AC power panel top guide

Side view of AC power panel top guide

  • Media owner Sea Angel
  • Date added Oct 9, 2007
  • Reaction score 0
  • Comments 0

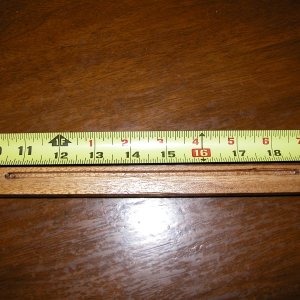

Top slide for ac power panel cover. Made from a 3' piece of 3/4" oak finish stock from Home Depot. Datto is with a Dremel tool router bit set 3/16".

Top slide for ac power panel cover. Made from a 3' piece of 3/4" oak finish stock from Home Depot. Datto is with a Dremel tool router bit set 3/16".

  • Media owner Sea Angel
  • Date added Oct 9, 2007
  • Reaction score 0
  • Comments 0
S

Top support guide resting on a 3/4" temp. spacer to simulate the cabin setup.
