Lisa also made a great stow bag with a semi-rigid rubberized bottom for schlepping the thing around the boat.

Lisa also made a great stow bag with a semi-rigid rubberized bottom for schlepping the thing around the boat.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
1024p inuse2

1024p inuse2

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
Here is the "in use" AC. Kind of a cheezy '70's look with the fluffy opening cover, but I'll get used to it as it is blowing out cold air, I guess....

Here is the "in use" AC. Kind of a cheezy '70's look with the fluffy opening cover, but I'll get used to it as it is blowing out cold air, I guess....

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
.....and cut the cord off to be just the right length - had to open up the unit and cut off about 2ft of the pigtail, putting on new crimp ends.

.....and cut the cord off to be just the right length - had to open up the unit and cut off about 2ft of the pigtail, putting on new crimp ends.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
I ran a dedicated AC socket to right near the AC cord outlet.

I ran a dedicated AC socket to right near the AC cord outlet.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
I used a kayak "bungee button" (http://kayakfishinggear.com/bungeebutton.aspx) at each corner of the window frame.

I used a kayak "bungee button" (http://kayakfishinggear.com/bungeebutton.aspx) at each corner of the window frame.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
Lisa made the sock to have the exact rectangular opening of the AC unit on one end,, and the measured outer window frame on the outer edge. I used thin aluminum strips and VERY short sheet metal screws to fasten the "sock" to the AC unit. The outer edge has 1/4" bungee cord in a hem and one of those squeeze cinch thingies. There is two fabric layers with some insulating foam in between them to help (marginally) prevent air-to-air exchange.

Lisa made the sock to have the exact rectangular opening of the AC unit on one end,, and the measured outer window frame on the outer edge. I used thin aluminum strips and VERY short sheet metal screws to fasten the "sock" to the AC unit. The outer edge has 1/4" bungee cord in a hem and one of those squeeze cinch thingies. There is two fabric layers with some insulating foam in between them to help (marginally) prevent air-to-air exchange.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
Then we started measuring for a "sock" to seal up the air as best we could.

Then we started measuring for a "sock" to seal up the air as best we could.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0

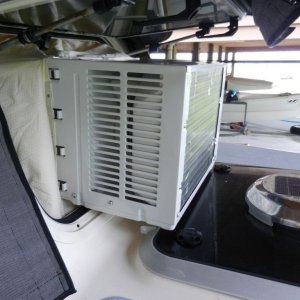

Here is the outside of the unit sitting on the hatch hinges.

Here is the outside of the unit sitting on the hatch hinges.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0

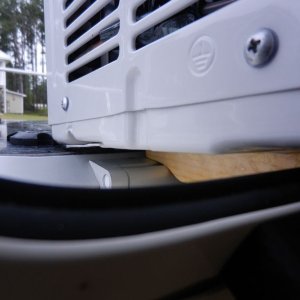

The backs of the "feet" are cut so that they sit on the hinges of the hatch. They are cut down so that they cause the AC to angle back for good water drainage. They are just high enough, though, to keep the AC off of the lexan.

The backs of the "feet" are cut so that they sit on the hinges of the hatch. They are cut down so that they cause the AC to angle back for good water drainage. They are just high enough, though, to keep the AC off of the lexan.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
Here are the hooks in the feet firmly connected to the window frame.

Here are the hooks in the feet firmly connected to the window frame.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
The first thing I did was epoxy some "feet" on the bottom of the AC. There are "hooks" cut into the feet to sit on the window frame. These are glued down with 5200.

The first thing I did was epoxy some "feet" on the bottom of the AC. There are "hooks" cut into the feet to sit on the window frame. These are glued down with 5200.

  • Media owner Ray
  • Date added Oct 21, 2013
  • Reaction score 0
  • Comments 0
R

The first thing I did was epoxy some "feet" on the bottom of the AC. There are "hooks" cut into the feet to sit on the window frame. These are glued down with 5200.
