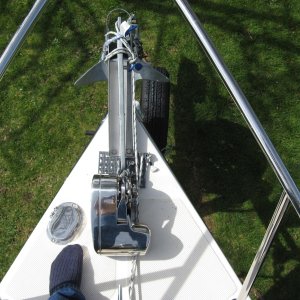

I turned on every system in the boat and then cycled the windlass, nothing popped or quit, completed install

I turned on every system in the boat and then cycled the windlass, nothing popped or quit, completed install

  • Media owner ghone
  • Date added Apr 20, 2012
  • Reaction score 0
  • Comments 0
1/4 inch 12x12 UHDW plastic backing plate windlass load is in shear so maybe overkill but maybe not. lewmar provides 3/8 washers, not even fender washers

1/4 inch 12x12 UHDW plastic backing plate windlass load is in shear so maybe overkill but maybe not. lewmar provides 3/8 washers, not even fender washers

  • Media owner ghone
  • Date added Apr 20, 2012
  • Reaction score 0
  • Comments 0

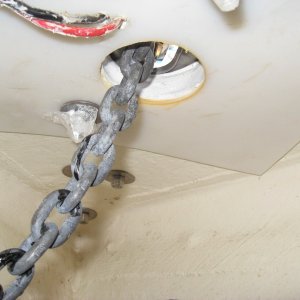

studs cut short and taped over to prevent injury if reaching in to adjust pile of rode power wires zap strapped to deck with a lot of extra length for ease of maintenace. (cut the strap)

studs cut short and taped over to prevent injury if reaching in to adjust pile of rode power wires zap strapped to deck with a lot of extra length for ease of maintenace. (cut the strap)

  • Media owner ghone
  • Date added Apr 20, 2012
  • Reaction score 0
  • Comments 0
bolted in place

bolted in place

  • Media owner ghone
  • Date added Apr 20, 2012
  • Reaction score 0
  • Comments 0
taped around gasket (did not use it) to limit sealant spread to deck used 3M 4200 white

taped around gasket (did not use it) to limit sealant spread to deck used 3M 4200 white

  • Media owner ghone
  • Date added Apr 20, 2012
  • Reaction score 0
  • Comments 0
undercut and epoxy filled curing overnight

undercut and epoxy filled curing overnight

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
when the Force is strong with you cut the holes

when the Force is strong with you cut the holes

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
check it 9 times and walk away between the times Get this part correct

check it 9 times and walk away between the times Get this part correct

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
using broom handle as strait edge to be sure I'm lined up

using broom handle as strait edge to be sure I'm lined up

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
easy access to switch yet protected

easy access to switch yet protected

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
Lewmar is providing better switches Up is up Down is down go figure

Lewmar is providing better switches Up is up Down is down go figure

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
Lewmar relay

Lewmar relay

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
Lewmar relay bottom left easy access and allows wires from aft easy attachment

Lewmar relay bottom left easy access and allows wires from aft easy attachment

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0

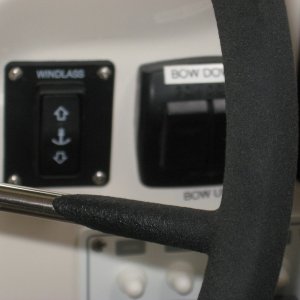

windlass switch next to trim switch

windlass switch next to trim switch

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0

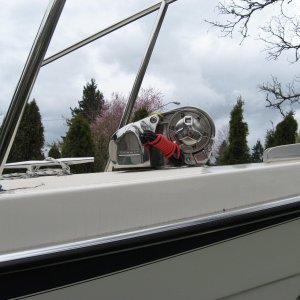

testing fit Lewmar Pro Series 700H. Kerri On

testing fit Lewmar Pro Series 700H. Kerri On

  • Media owner ghone
  • Date added Apr 18, 2012
  • Reaction score 0
  • Comments 0
G

testing fit Lewmar Pro Series 700H. Kerri On
