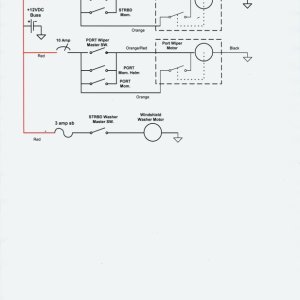

Windshield Washer Kit Wiring

Windshield Washer Kit Wiring

  • Media owner Sea Angel
  • Date added Mar 9, 2012
  • Reaction score 0
  • Comments 0

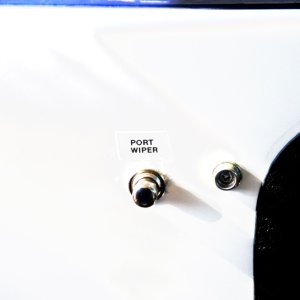

Port Wiper Momentary Control Switch.

Port Wiper Momentary Control Switch.

  • Media owner Sea Angel
  • Date added Apr 15, 2010
  • Reaction score 0
  • Comments 0

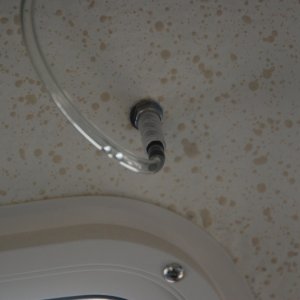

Starboard Washer Thru Deck Fitting

Starboard Washer Thru Deck Fitting

  • Media owner Sea Angel
  • Date added Apr 15, 2010
  • Reaction score 0
  • Comments 0
Port Washer Thru Deck Fitting

Port Washer Thru Deck Fitting

  • Media owner Sea Angel
  • Date added Apr 15, 2010
  • Reaction score 0
  • Comments 0
Helm Wiper & Washer Control Switches

Helm Wiper & Washer Control Switches

  • Media owner Sea Angel
  • Date added Apr 15, 2010
  • Reaction score 0
  • Comments 0

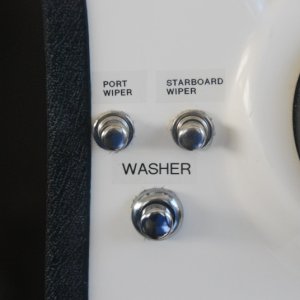

Helm Wiper Motor/Washer Switches. The added Washer Switch is the larger bottom switch. An in-line fuse holder is located abt 2" from HOUSE 12V BUSS feeding the Washer Switch.

Helm Wiper Motor/Washer Switches. The added Washer Switch is the larger bottom switch. An in-line fuse holder is located abt 2" from HOUSE 12V BUSS feeding the Washer Switch.

  • Media owner Sea Angel
  • Date added Apr 15, 2010
  • Reaction score 0
  • Comments 0

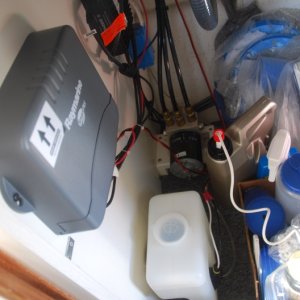

The water tank is located under the sink and below the Autopilot CPU - beside the hydraulic pump. NOTE: Windshield Washer Fluid should be mixed with fresh water to minimize any 'crud' buildup in the lines and heads with full strength used as you would your car when approaching the colder seasons. The brown jug, behind the white washer tank, is a pump sprayer from yard work that I used to spray fresh water on the windows. (One more item I can remove in the near future.)

The water tank is located under the sink and below the Autopilot CPU - beside the hydraulic pump. NOTE: Windshield Washer Fluid should be mixed with fresh water to minimize any 'crud' buildup in the lines and heads with full strength used as you would your car when approaching the colder seasons. The brown jug, behind the white washer tank, is a pump sprayer from yard work that I used to spray fresh water on the windows. (One more item I can remove in the near future.)

  • Media owner Sea Angel
  • Date added Apr 5, 2010
  • Reaction score 0
  • Comments 0

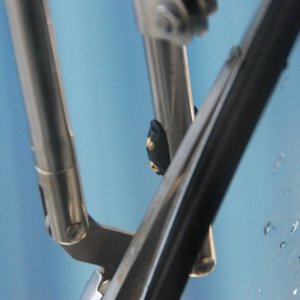

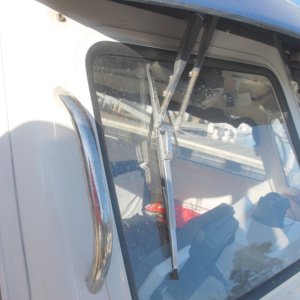

Close up view of the replacement AFI \"wet\" Pantographic arm spray head. There are two adjustable nozzels on each side of the arm that cover large areas of the window.

Close up view of the replacement AFI \"wet\" Pantographic arm spray head. There are two adjustable nozzels on each side of the arm that cover large areas of the window.

  • Media owner Sea Angel
  • Date added Apr 5, 2010
  • Reaction score 0
  • Comments 0

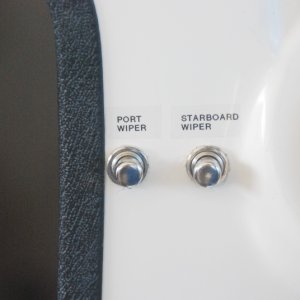

Helm wiper momentary control switches labeled.

Helm wiper momentary control switches labeled.

  • Media owner Sea Angel
  • Date added Nov 5, 2009
  • Reaction score 0
  • Comments 0
Closer interior starboard side view with the 14" replacement wiper installed.

Closer interior starboard side view with the 14" replacement wiper installed.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

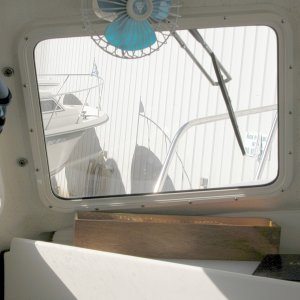

Closer interior port view with the replacement 14" wiper installed.

Closer interior port view with the replacement 14" wiper installed.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0
Standard 11.5" wipers and arms replaced with Pantographic arms and 14" SS Deluxe wipers. Adjustment of the 14" wiper position is straight forward with plenty of room for a full sweep. Adjust it parallel to the side in the park position. Either the SS Deluxe or SS Standard wiper(cheaper) could be used.

Standard 11.5" wipers and arms replaced with Pantographic arms and 14" SS Deluxe wipers. Adjustment of the 14" wiper position is straight forward with plenty of room for a full sweep. Adjust it parallel to the side in the park position. Either the SS Deluxe or SS Standard wiper(cheaper) could be used.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

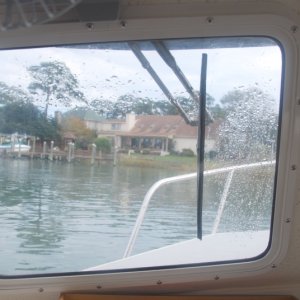

PIX shows the starboard side original 11.5" SS Deluxe wiper with the replacement arm. New 14" wiper is now installed. It's adjusted parallel to the outside edge of the window also it's centered in height.

PIX shows the starboard side original 11.5" SS Deluxe wiper with the replacement arm. New 14" wiper is now installed. It's adjusted parallel to the outside edge of the window also it's centered in height.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

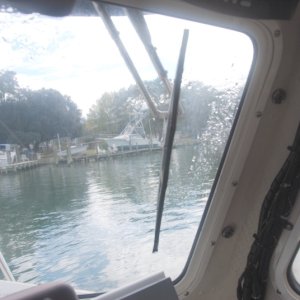

PIX shows the port side original 11.5" SS Deluxe wiper with the replacement arm. The new 14" wiper is now installed. It's adjusted parallel to the outside edge of the window and centered in its height.

PIX shows the port side original 11.5" SS Deluxe wiper with the replacement arm. The new 14" wiper is now installed. It's adjusted parallel to the outside edge of the window and centered in its height.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

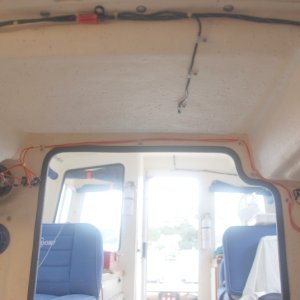

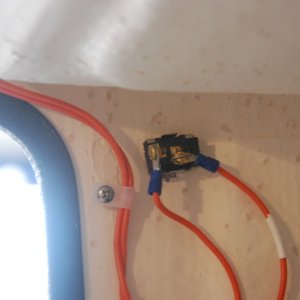

Sea Angel Mate's momentary port wiper control wiring.

Sea Angel Mate's momentary port wiper control wiring.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

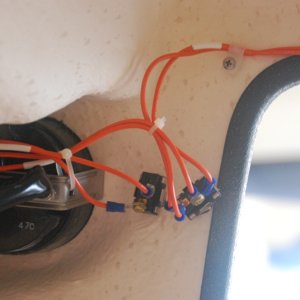

Sea Angel's Port(right) & Starboard (left) momentary wiper control switches' wiring.

Sea Angel's Port(right) & Starboard (left) momentary wiper control switches' wiring.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

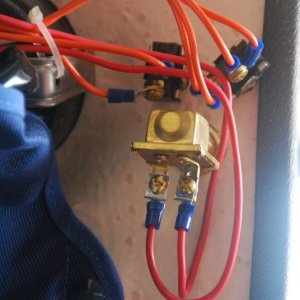

Sea Angel's backside view of momentary wiper control switches. The port switches are wired in parallel. Each switch is wired across/parallel to their main respective wiper switch.

Sea Angel's backside view of momentary wiper control switches. The port switches are wired in parallel. Each switch is wired across/parallel to their main respective wiper switch.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

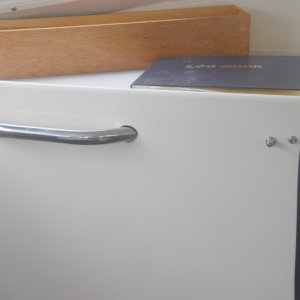

Sea Angel's Port/Mate's momentary wiper control switch to the left of the V-Berth cover snap. Mate gives this a high approval rating. Label is soon to follow.

Sea Angel's Port/Mate's momentary wiper control switch to the left of the V-Berth cover snap. Mate gives this a high approval rating. Label is soon to follow.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0

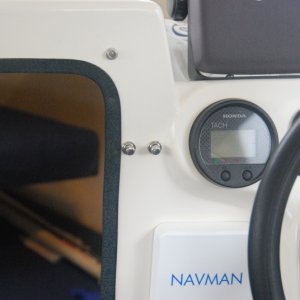

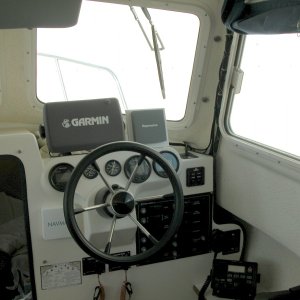

Sea Angel's Port & Starboard momentary wiper control switches - beside the digital port engine instrument guage & above the NAVMAN cover. These preclude having to push on-off the main wiper switches. Labels to follow.

Sea Angel's Port & Starboard momentary wiper control switches - beside the digital port engine instrument guage & above the NAVMAN cover. These preclude having to push on-off the main wiper switches. Labels to follow.

  • Media owner Sea Angel
  • Date added Oct 30, 2009
  • Reaction score 0
  • Comments 0
S

Standard 11.5" wipers and arms replaced with Pantographic arms and 14" SS Deluxe wipers. Adjustment of the 14" wiper position is straight forward with plenty of room for a full sweep. Adjust it parallel to the side in the park position. Either the SS Deluxe or SS Standard wiper(cheaper) could be used.
