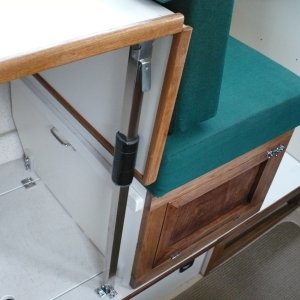

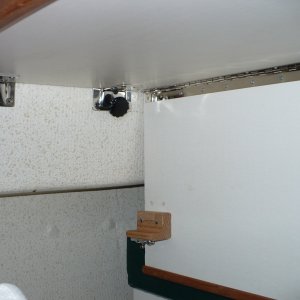

Note: The storage hatch cover Hinge was moved to the left so the box can slide back and a tab was added inside the hatch to support the lid. Also, I used some left over latch parts on the floor, this keeps the table leg from sliding backward. Also added a pad on the leg for the table to rest against.
- Montana Kev
- Jun 25, 2011
- 0
- 0

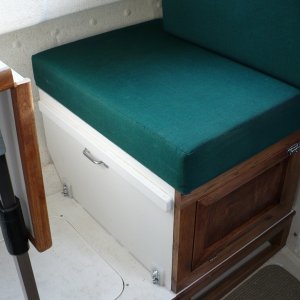

Sliding seat in new position. A lumbar pillow is nice to use here. We often sit on a PFD cushion for a better look-out/view. Not pictured here, I added a snap under the table and a small strap snaps into it and then snaps onto the existing cushion snap. This hold the back-rest cushion in place.
- Montana Kev
- Jun 25, 2011
- 0
- 0

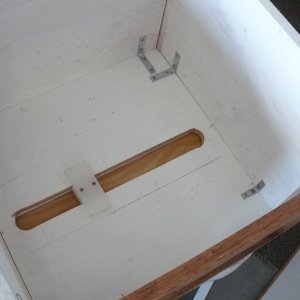

The Plastic "T" (made from cutting board) bolts down to/thru the floor. This keeps the seat box attached to the boat. Slide bolts hold the box in position, forward/aft side to side. A wood tray/cap goes over the "T", so it does not get in the way of gear storage. Or, if there is a drawer, the drawer will glide over the it. This system workes really well and is very simple to build.
- Montana Kev
- Feb 4, 2011
- 0
- 0
M
Sliding seat in new position. A lumbar pillow is nice to use here. We often sit on a PFD cushion for a better look-out/view. Not pictured here, I added a snap under the table and a small strap snaps into it and then snaps onto the existing cushion snap. This hold the back-rest cushion in place.
- 11
- Montana Kev
