Mostly done with the repairs and upgrades. Great upgrade with the SeaDek - highly recommended for durability and \"stickiness\" in holding objects on the shelf.

Mostly done with the repairs and upgrades. Great upgrade with the SeaDek - highly recommended for durability and \"stickiness\" in holding objects on the shelf.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0
Holes cut for new speakers, new radio and USB port. Also changed the wiring ports behind the controls on the starboard side.

Holes cut for new speakers, new radio and USB port. Also changed the wiring ports behind the controls on the starboard side.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

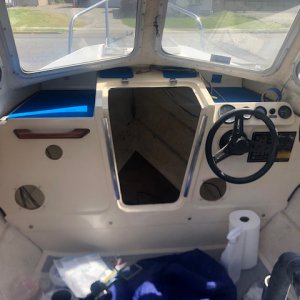

Front bulkhead back in place. Decided to upgrade the radio and speakers as well as add a USB port.

Front bulkhead back in place. Decided to upgrade the radio and speakers as well as add a USB port.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0
Better picture of the original cutoffs being used to skin the interior.

Better picture of the original cutoffs being used to skin the interior.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

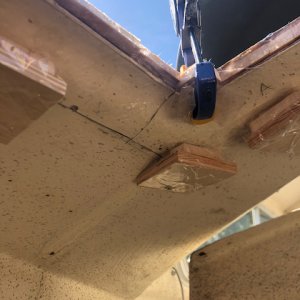

Replaced the coring and was able to save the original deck cutoffs to skin the interior.

Replaced the coring and was able to save the original deck cutoffs to skin the interior.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0
West System Epoxy for the win. Did ruin a hat but saved my bald head from epoxy drippings from the repairs.

West System Epoxy for the win. Did ruin a hat but saved my bald head from epoxy drippings from the repairs.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

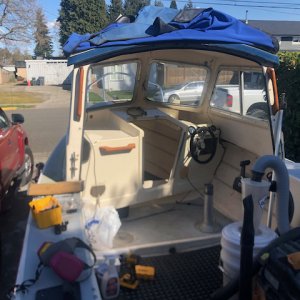

Ended up removing the front bulkhead for access, had to cut back the bottom side of the deck about 4 inches or so around the hatch opening to access all the damaged coring.

Ended up removing the front bulkhead for access, had to cut back the bottom side of the deck about 4 inches or so around the hatch opening to access all the damaged coring.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

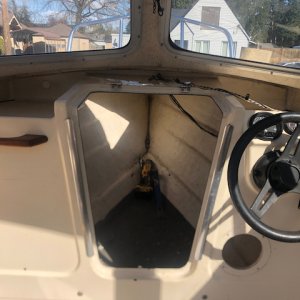

Had to drop the front bulkhead to access the area of damage on the aft side of the hatch. Front bulk head held on by a sealant and screws. Not sure if sealant was factory original or not.

Had to drop the front bulkhead to access the area of damage on the aft side of the hatch. Front bulk head held on by a sealant and screws. Not sure if sealant was factory original or not.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0
Only 2 inches extending to port.

Only 2 inches extending to port.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

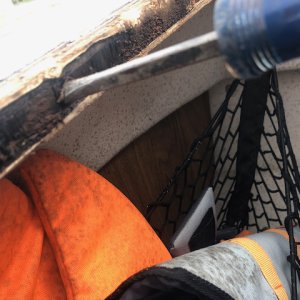

About 3 inches of damage to coring forward. Screwdriver sinking in to coring nicely.

About 3 inches of damage to coring forward. Screwdriver sinking in to coring nicely.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

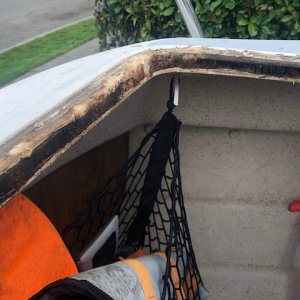

Water damage 2 to 3 inches to starboard.

Water damage 2 to 3 inches to starboard.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

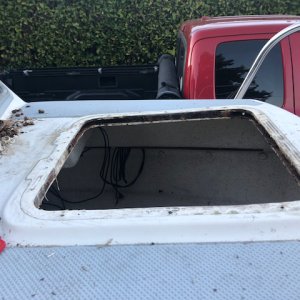

Water damage extended about 3 inches on aft side.

Water damage extended about 3 inches on aft side.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

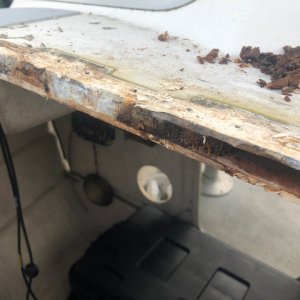

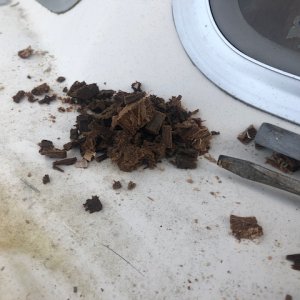

At least the water logged coring was easy to remove.

At least the water logged coring was easy to remove.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

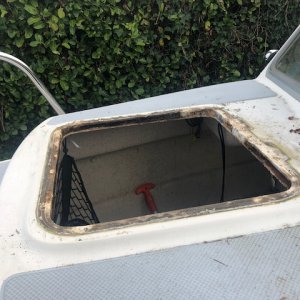

Pulled the hatch. Water damage and infiltration apparent around all edges of the hatch opening.

Pulled the hatch. Water damage and infiltration apparent around all edges of the hatch opening.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0

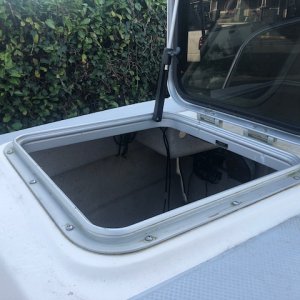

Pre repair photo. Bomar hatch in foredeck of a 16 Angler. Noticed a delayed leak around the edge of the hatch every time it rained.

Pre repair photo. Bomar hatch in foredeck of a 16 Angler. Noticed a delayed leak around the edge of the hatch every time it rained.

  • Media owner Brian J
  • Date added Jan 7, 2024
  • Reaction score 0
  • Comments 0
B

Pre repair photo. Bomar hatch in foredeck of a 16 Angler. Noticed a delayed leak around the edge of the hatch every time it rained.

  • Items 15
  • Album owner Brian J
  • Date created
Apparent long standing leak in the Bomar hatch screws with water infiltration in the deck coring.
