Drilled thru both swim step and the boat for the hydro line. No real need to remove and notch out the swim step.

Drilled thru both swim step and the boat for the hydro line. No real need to remove and notch out the swim step.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0

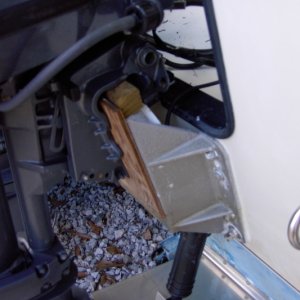

The wood 1x1 that elevates the engine gives a bit of clearance at the tab. The real purpose is because the two screw clamps that hold the kicker will hit the stern of the boat.

The wood 1x1 that elevates the engine gives a bit of clearance at the tab. The real purpose is because the two screw clamps that hold the kicker will hit the stern of the boat.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
12x10 trim tab. Would have gone "HUGE" if not for the kicker. I like the indestructable hinge and the turned down tabs on the Bennetts for flat bottom CD tracking.

12x10 trim tab. Would have gone "HUGE" if not for the kicker. I like the indestructable hinge and the turned down tabs on the Bennetts for flat bottom CD tracking.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
Tab doesn't seem to affect original mount of transducer.

Tab doesn't seem to affect original mount of transducer.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
15 H.P. kicker mount pin is in the last hole to keep kicker away from tab.

15 H.P. kicker mount pin is in the last hole to keep kicker away from tab.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
Trim Tab cylinder (M120 sport tabs) just clears under mini jacker mount.

Trim Tab cylinder (M120 sport tabs) just clears under mini jacker mount.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
I run the kicker with the main raised and leaned to port. Good room to turn the kicker. I enjoy cruising from the cockpit and don't use a steering rod.

I run the kicker with the main raised and leaned to port. Good room to turn the kicker. I enjoy cruising from the cockpit and don't use a steering rod.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
The mount comes with rows of dimples for holes. You drill the holes you need where you need them. The top two bolts are above the splash well. The others behind the fuel tanks. I think it is rated for 150 lbs.

The mount comes with rows of dimples for holes. You drill the holes you need where you need them. The top two bolts are above the splash well. The others behind the fuel tanks. I think it is rated for 150 lbs.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0

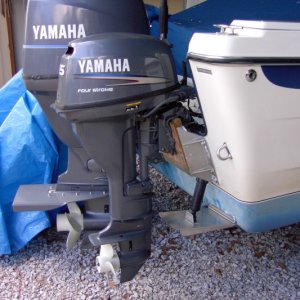

"Mini Jacker" fixed kicker mount. Allows the engine to sit a dab to the rear.Help with turning both directions and with the angle of the stern to keep the prop out of the water while running the main.

"Mini Jacker" fixed kicker mount. Allows the engine to sit a dab to the rear.Help with turning both directions and with the angle of the stern to keep the prop out of the water while running the main.

  • Media owner C-WEED
  • Date added Jan 28, 2007
  • Reaction score 0
  • Comments 0
C

"Mini Jacker" fixed kicker mount. Allows the engine to sit a dab to the rear.Help with turning both directions and with the angle of the stern to keep the prop out of the water while running the main.
