Here it is in use, refilling the dinghy outboard\'s internal tank. Can also use it to fill the Honda EU generator easily!

Here it is in use, refilling the dinghy outboard\'s internal tank. Can also use it to fill the Honda EU generator easily!

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 0
I split the output of the Racor into a Y-fitting and put two valves on the outputs, one for the main engine, and one for the auxiliary port.

I split the output of the Racor into a Y-fitting and put two valves on the outputs, one for the main engine, and one for the auxiliary port.

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 0
Then I made up a short hose with a primer bulb on it to pump the gas.

Then I made up a short hose with a primer bulb on it to pump the gas.

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 0
I bought the mating connector with a hose barb.

I bought the mating connector with a hose barb.

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 0
Here is what the Honda fitting looks like without the cap.

Here is what the Honda fitting looks like without the cap.

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 1
Here is the backside. I used a bulkhead fitting with 1/4" threads on both ends inside the outer threaded fitting. The fitting came from http://www.mcmastercarr.com

Here is the backside. I used a bulkhead fitting with 1/4" threads on both ends inside the outer threaded fitting. The fitting came from http://www.mcmastercarr.com

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 1
Close up of port. I used a Honda outboard connector with 1/4" threads. The cap is a plastic/rubber thing I had that just happened to fit. It will surely degrade quickly and I'll have to find something else.

Close up of port. I used a Honda outboard connector with 1/4" threads. The cap is a plastic/rubber thing I had that just happened to fit. It will surely degrade quickly and I'll have to find something else.

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 0

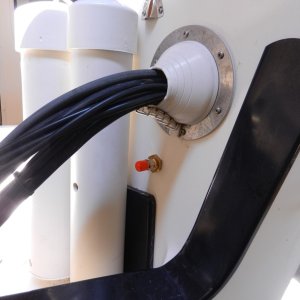

Fuel port next to outboard cable exit with rubber dust cap

Fuel port next to outboard cable exit with rubber dust cap

  • Media owner Ray
  • Date added Nov 21, 2013
  • Reaction score 0
  • Comments 0
R

Fuel port next to outboard cable exit with rubber dust cap
