dogs: check, lunch packed: check, in the water: check, engine won\'t start. Nice C-Dory behind me enjoyed the day though!

dogs: check, lunch packed: check, in the water: check, engine won\'t start. Nice C-Dory behind me enjoyed the day though!

  • Media owner Jackie
  • Date added Sep 14, 2020
  • Reaction score 0
  • Comments 0
View forward you can see v-berth tabbing and seatboxes in.

View forward you can see v-berth tabbing and seatboxes in.

  • Media owner Jackie
  • Date added Sep 14, 2020
  • Reaction score 0
  • Comments 0

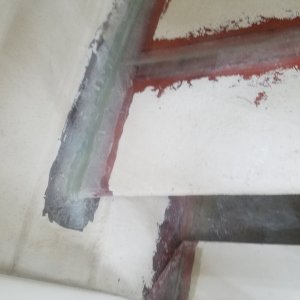

Tabbing on port box

Tabbing on port box

  • Media owner Jackie
  • Date added Sep 14, 2020
  • Reaction score 0
  • Comments 0
Got the first seat box tabbed back in. gotta wait for it to set up before I tackle the other side.

Got the first seat box tabbed back in. gotta wait for it to set up before I tackle the other side.

  • Media owner Jackie
  • Date added Sep 14, 2020
  • Reaction score 0
  • Comments 0
V-berth side. The bunk does not actually touch the hull. It was over an inch away on each side in front of the seats. That made it hard to tab in.

V-berth side. The bunk does not actually touch the hull. It was over an inch away on each side in front of the seats. That made it hard to tab in.

  • Media owner Jackie
  • Date added Sep 14, 2020
  • Reaction score 0
  • Comments 0
Littlest grandaughter approves

Littlest grandaughter approves

  • Media owner Jackie
  • Date added Sep 14, 2020
  • Reaction score 0
  • Comments 0
Fiberglass laid on the floor!

Fiberglass laid on the floor!

  • Media owner Jackie
  • Date added Aug 25, 2020
  • Reaction score 0
  • Comments 0

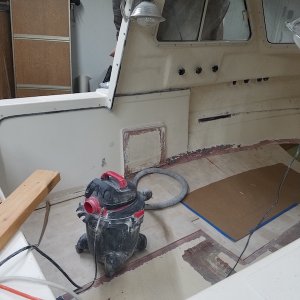

Most of the balsa cut to fit.

Most of the balsa cut to fit.

  • Media owner Jackie
  • Date added Aug 25, 2020
  • Reaction score 0
  • Comments 0
This is where I removed the v-berth bunk and will have to replace it someday. Do I grind everything back at a 12:1 ratio to prepare for that?

This is where I removed the v-berth bunk and will have to replace it someday. Do I grind everything back at a 12:1 ratio to prepare for that?

  • Media owner Jackie
  • Date added May 28, 2020
  • Reaction score 0
  • Comments 0

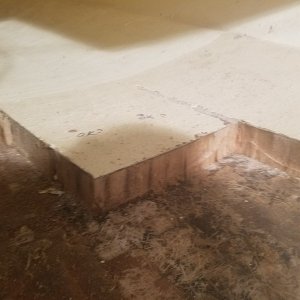

This is the limit of my forward cut and I\'m having the same problem/question. You can see from the shadows that it is very uneven

This is the limit of my forward cut and I\'m having the same problem/question. You can see from the shadows that it is very uneven

  • Media owner Jackie
  • Date added May 28, 2020
  • Reaction score 0
  • Comments 0

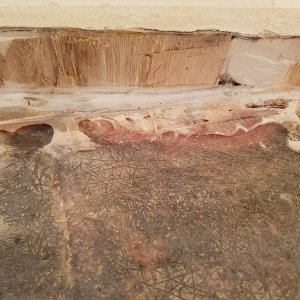

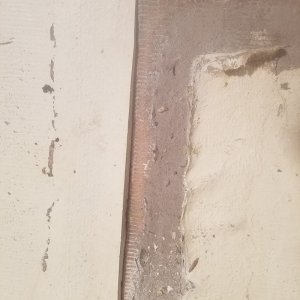

Along the sidewall I ran into filler where the balsa core met the wall. You can see a lot of air pockets and thick epoxy. How smooth does this need to get?

Along the sidewall I ran into filler where the balsa core met the wall. You can see a lot of air pockets and thick epoxy. How smooth does this need to get?

  • Media owner Jackie
  • Date added May 28, 2020
  • Reaction score 0
  • Comments 0

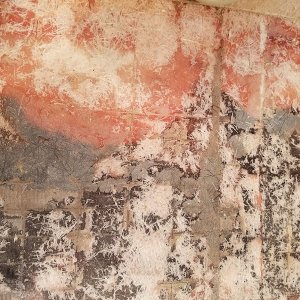

This shows the various ways the floor looks: nice pink smooth fiberglass, icky black fiberglass, areas of fuzzy mat and a lot of unevenness. How much sanding do I need to do to get it ready for new mat?

This shows the various ways the floor looks: nice pink smooth fiberglass, icky black fiberglass, areas of fuzzy mat and a lot of unevenness. How much sanding do I need to do to get it ready for new mat?

  • Media owner Jackie
  • Date added May 28, 2020
  • Reaction score 0
  • Comments 0

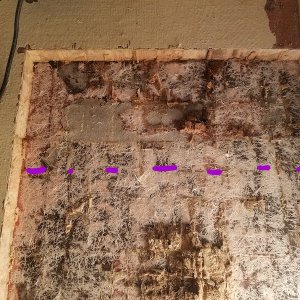

The dotted line is where I left off. I had one little black line to follow back and thought the rest looked pretty good. Once I cut in it was full of water back there. The smooth areas are where the balsa was not adhered to the floor at all.

The dotted line is where I left off. I had one little black line to follow back and thought the rest looked pretty good. Once I cut in it was full of water back there. The smooth areas are where the balsa was not adhered to the floor at all.

  • Media owner Jackie
  • Date added May 18, 2020
  • Reaction score 0
  • Comments 0

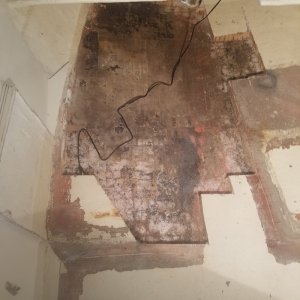

The whole shot so far. It is huge, and tbh, my cheap pin meter shows high moisture all around. There is no dry!

The whole shot so far. It is huge, and tbh, my cheap pin meter shows high moisture all around. There is no dry!

  • Media owner Jackie
  • Date added May 17, 2020
  • Reaction score 0
  • Comments 0
View of rear. The dark area onright is wet so I still need to clear a bit more in that direction.

View of rear. The dark area onright is wet so I still need to clear a bit more in that direction.

  • Media owner Jackie
  • Date added May 17, 2020
  • Reaction score 0
  • Comments 0

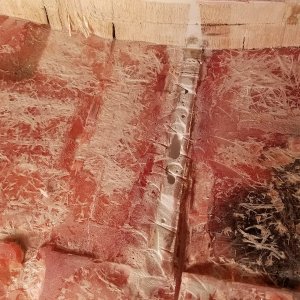

Front view after removing the wet areas and cutting out the un-adhered area. Note the wide kerfs. These are what the water followed up. One on the right is filled with nearly 1/2 inch fiberglass.

Front view after removing the wet areas and cutting out the un-adhered area. Note the wide kerfs. These are what the water followed up. One on the right is filled with nearly 1/2 inch fiberglass.

  • Media owner Jackie
  • Date added May 17, 2020
  • Reaction score 0
  • Comments 0

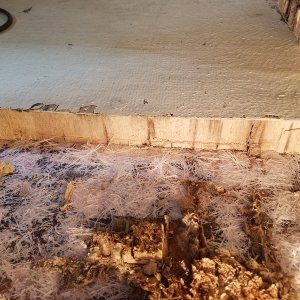

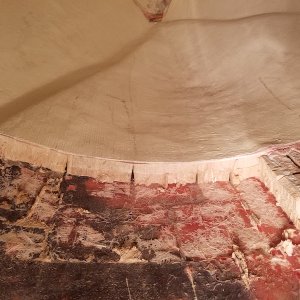

This is in the bow. You cansee the balsa looks good, but it is not adhered to the bottom and moisture trickled out.

This is in the bow. You cansee the balsa looks good, but it is not adhered to the bottom and moisture trickled out.

  • Media owner Jackie
  • Date added May 17, 2020
  • Reaction score 0
  • Comments 0
Near v-berth support on starboard side. Where dark lines are may (probably?) needs more cleaning out?

Near v-berth support on starboard side. Where dark lines are may (probably?) needs more cleaning out?

  • Media owner Jackie
  • Date added May 7, 2020
  • Reaction score 0
  • Comments 0
Remaining wet area at back. It is located in the crotch of the angle you can see in the overview.

Remaining wet area at back. It is located in the crotch of the angle you can see in the overview.

  • Media owner Jackie
  • Date added May 7, 2020
  • Reaction score 0
  • Comments 0
View of what I\'ve removed so far. Just two really wet spots left to explore.

View of what I\'ve removed so far. Just two really wet spots left to explore.

  • Media owner Jackie
  • Date added May 7, 2020
  • Reaction score 0
  • Comments 0
Showing mud and water trail again and crack of the outer tabbing.

Showing mud and water trail again and crack of the outer tabbing.

  • Media owner Jackie
  • Date added May 7, 2020
  • Reaction score 0
  • Comments 0

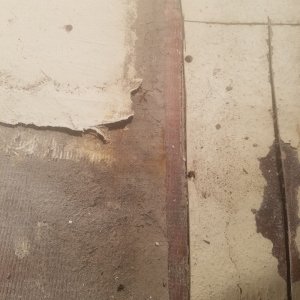

Note the dried mud areas where nothing was stuck down. You can also see the feather crack of the tabbing at lower right of photo. I just pulled that off by hand.

Note the dried mud areas where nothing was stuck down. You can also see the feather crack of the tabbing at lower right of photo. I just pulled that off by hand.

  • Media owner Jackie
  • Date added May 7, 2020
  • Reaction score 0
  • Comments 0
Port seat box removed. Tabbing pulled right off

Port seat box removed. Tabbing pulled right off

  • Media owner Jackie
  • Date added May 7, 2020
  • Reaction score 0
  • Comments 0
In front of seat box.

In front of seat box.

  • Media owner Jackie
  • Date added Apr 29, 2020
  • Reaction score 0
  • Comments 0
J

First cutout. It was clearly hollow under here.
