Completed overhead light. Has two brightness levels. Highest is good enough to conduct surgeries under! It is very bright.

Completed overhead light. Has two brightness levels. Highest is good enough to conduct surgeries under! It is very bright.

  • Reaction score 0
  • Comments 0

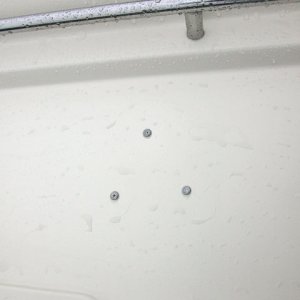

Light mounting ring screwed to overhead through the fiberglass as there was not a core to put screws into.

Light mounting ring screwed to overhead through the fiberglass as there was not a core to put screws into.

  • Reaction score 0
  • Comments 0
Light mount over dinette table, a much needed addition. Mounting ring made out of King Starboard. Ring is easily replaced if new light fixture is required.

Light mount over dinette table, a much needed addition. Mounting ring made out of King Starboard. Ring is easily replaced if new light fixture is required.

  • Reaction score 0
  • Comments 1
Level floor in galley cabinet. Made out of 1/2" ply and screwed to cleats for easy removal.

Level floor in galley cabinet. Made out of 1/2" ply and screwed to cleats for easy removal.

  • Reaction score 0
  • Comments 0
New stern railing with rod holder brackets and new fish cleaning table of my own design

New stern railing with rod holder brackets and new fish cleaning table of my own design

  • Reaction score 0
  • Comments 0
Aft bilge line and through hull fitting on port side

Aft bilge line and through hull fitting on port side

  • Reaction score 0
  • Comments 0
Aft bilge pump mounting

Aft bilge pump mounting

  • Reaction score 0
  • Comments 5
True Charge 10 Amp battery charger mounted under galley on front bulkhead on the left, Blue Sea Systems CL-Series BatteryLink a battery combiner on the right

True Charge 10 Amp battery charger mounted under galley on front bulkhead on the left, Blue Sea Systems CL-Series BatteryLink a battery combiner on the right

  • Reaction score 0
  • Comments 0
Blue Seas Systems AC panel mounted in port aft seat box. It has a digital mulitmeter built in

Blue Seas Systems AC panel mounted in port aft seat box. It has a digital mulitmeter built in

  • Reaction score 0
  • Comments 0
Shore power cabling, AC panel and GFI outlet mounting locations inside port aft seat box

Shore power cabling, AC panel and GFI outlet mounting locations inside port aft seat box

  • Reaction score 0
  • Comments 0

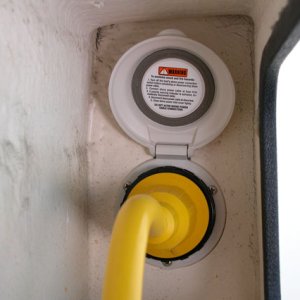

Shore power connection under port gunnel

Shore power connection under port gunnel

  • Reaction score 0
  • Comments 0
GFI outlet mounted on front of the port aft seat

GFI outlet mounted on front of the port aft seat

  • Reaction score 0
  • Comments 0
Shore power cabling inside

Shore power cabling inside

  • Reaction score 0
  • Comments 0

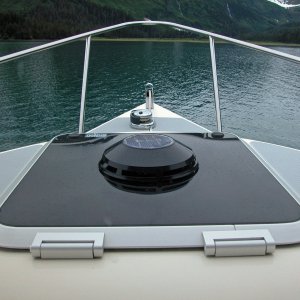

(AnchortownJim) View of Nicro Vent in the hatch from the cabin

(AnchortownJim) View of Nicro Vent in the hatch from the cabin

  • Reaction score 0
  • Comments 0
(AnchortownJim) View of Quick Aster 500 windless from the cabin

(AnchortownJim) View of Quick Aster 500 windless from the cabin

  • Reaction score 0
  • Comments 0
GPS mounting on shelf and compass mounting.

GPS mounting on shelf and compass mounting.

  • Reaction score 0
  • Comments 0
(AnchortownJim) Windless control in my hand. The cord is long enough when passed through the open front window for me to operate it from the bow. It also has a built in line out counter. Very handy to know how much rode is out.

(AnchortownJim) Windless control in my hand. The cord is long enough when passed through the open front window for me to operate it from the bow. It also has a built in line out counter. Very handy to know how much rode is out.

  • Reaction score 0
  • Comments 0

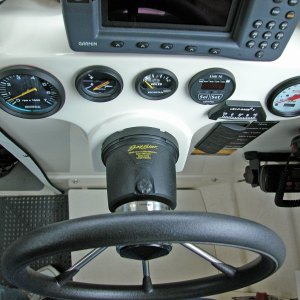

(AnchortownJim) Baystar hydraulic steering replaced the cable system

(AnchortownJim) Baystar hydraulic steering replaced the cable system

  • Reaction score 0
  • Comments 0

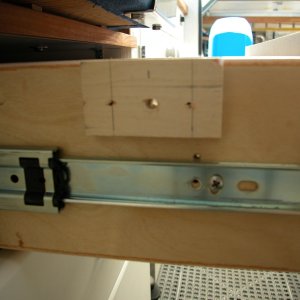

(AnchortownJim) Side view of drawer with added wood block for the retaining pins

(AnchortownJim) Side view of drawer with added wood block for the retaining pins

  • Reaction score 0
  • Comments 0
(AnchortownJim) Simple method to keep drawers from sliding open in rough seas, stainless steel pins

(AnchortownJim) Simple method to keep drawers from sliding open in rough seas, stainless steel pins

  • Reaction score 0
  • Comments 0

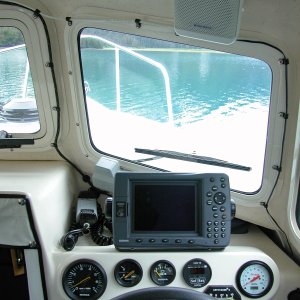

(AnchortownJim) View from the captain's seat

(AnchortownJim) View from the captain's seat

  • Reaction score 0
  • Comments 0
(AnchortownJim) Another view of the solenoid mounting

(AnchortownJim) Another view of the solenoid mounting

  • Reaction score 0
  • Comments 0
(AnchortownJim) Quick windless solenoid mounted behind the engine throttle block

(AnchortownJim) Quick windless solenoid mounted behind the engine throttle block

  • Reaction score 0
  • Comments 0
(AnchortownJim) Flowscan sending unit, mounted under the starboard lazerette above the fuel tank

(AnchortownJim) Flowscan sending unit, mounted under the starboard lazerette above the fuel tank

  • Reaction score 0
  • Comments 0
A

(AnchortownJim) Quick ASTER 500 mounting plate made out of 3/16" 6061 aluminum, prior to being epoxied to the deck with MarineTex, side view.
