Here is what I used to keep the wiring (and Airhead vent hose) in the corner. I made some aluminum tabs with tie-wrap anchors on the end. I just pinched a few of these in the window frame - no holes!!

Here is what I used to keep the wiring (and Airhead vent hose) in the corner. I made some aluminum tabs with tie-wrap anchors on the end. I just pinched a few of these in the window frame - no holes!!

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
Cockpit light on.

Cockpit light on.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
Another view

Another view

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
Cockpit light and some ebay rod holders.

Cockpit light and some ebay rod holders.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
Here is the front view overall. Anchor light and VHF Antenna. Radar when I replenish the till.

Here is the front view overall. Anchor light and VHF Antenna. Radar when I replenish the till.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
I brought the wiring down in the corner, into the sidewall, then through the back with a fish to the under-galley area.

I brought the wiring down in the corner, into the sidewall, then through the back with a fish to the under-galley area.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
The wiring hole was drilled out and the edges sealed off with epoxy. I wrapped the bundle with some rigid(-ish) slit mesh harness (http://www.cabletiesandmore.com/WrapAroundSleeving.php). Expensive, but I didn't need much.

The wiring hole was drilled out and the edges sealed off with epoxy. I wrapped the bundle with some rigid(-ish) slit mesh harness (http://www.cabletiesandmore.com/WrapAroundSleeving.php). Expensive, but I didn't need much.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
I drilled lots of holes, put in grommets, and rand strings for what I didn't want to hook up yet.

I drilled lots of holes, put in grommets, and rand strings for what I didn't want to hook up yet.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
No amount of measuring would be adequate with an off-site welder. I made some black starboard wedges (round) of different thicknesses that I could just spin underneath the feet until the correct angle was met.

No amount of measuring would be adequate with an off-site welder. I made some black starboard wedges (round) of different thicknesses that I could just spin underneath the feet until the correct angle was met.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0

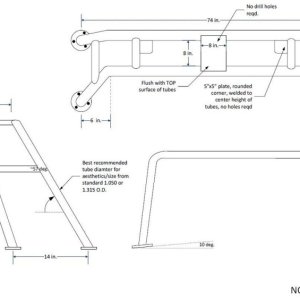

After finding no joy online or on the phone, I drew my own arch.

After finding no joy online or on the phone, I drew my own arch.

  • Media owner Ray
  • Date added Oct 29, 2013
  • Reaction score 0
  • Comments 0
R

After finding no joy online or on the phone, I drew my own arch.
