Then I used 2 of the other clamps to mount the anchor/running light above the door.

Then I used 2 of the other clamps to mount the anchor/running light above the door.

  • Reaction score 0
  • Comments 0
I ended up not liking the clamps I had initially used to clamp the panel to the rack so I replaced them with these beefier ones. Much better.

I ended up not liking the clamps I had initially used to clamp the panel to the rack so I replaced them with these beefier ones. Much better.

  • Reaction score 0
  • Comments 0
Monitor is now in it's new location. I figured if I put it somewhere where I'd see all the time I'd get obsessed with watchinging it, so this seemed like a good place for it. We'll see how it works out. Having done that, this project is done!!

Monitor is now in it's new location. I figured if I put it somewhere where I'd see all the time I'd get obsessed with watchinging it, so this seemed like a good place for it. We'll see how it works out. Having done that, this project is done!!

  • Reaction score 0
  • Comments 0

  • Reaction score 0
  • Comments 0
This was charge input earlier this morning when we had sun, which was roughly 70 degrees off axis from the panel. Should get somewhere around 7-9 amps input, on axis, and sunny.

This was charge input earlier this morning when we had sun, which was roughly 70 degrees off axis from the panel. Should get somewhere around 7-9 amps input, on axis, and sunny.

  • Reaction score 0
  • Comments 0
This shows AMPs going into the battery (toggle switch in up position). We are totally clouded over this afternoon so input is weak.

This shows AMPs going into the battery (toggle switch in up position). We are totally clouded over this afternoon so input is weak.

  • Reaction score 0
  • Comments 0
This shows AMPs being used (toggle switch in down position). It's currently showing amps drawn while the fridge was running. This will get mounted in the cabin somewhere, once I figure out where.

This shows AMPs being used (toggle switch in down position). It's currently showing amps drawn while the fridge was running. This will get mounted in the cabin somewhere, once I figure out where.

  • Reaction score 0
  • Comments 0
Here's the rack/solar-panel leaned up against the house.

Here's the rack/solar-panel leaned up against the house.

  • Reaction score 0
  • Comments 0
Finished up the cabling/connectors where the panel will connect to the boat. The cables are extension cables going to the panel which is leaning up against the house. When the rack/solar-panel is mounted to the roof the cables directly from the panel will plug right in without the extensions. (I have to leave the rack off for my boat cover to fit). The velcro strain relief is screwed down under one of the bimini top snaps.

Finished up the cabling/connectors where the panel will connect to the boat. The cables are extension cables going to the panel which is leaning up against the house. When the rack/solar-panel is mounted to the roof the cables directly from the panel will plug right in without the extensions. (I have to leave the rack off for my boat cover to fit). The velcro strain relief is screwed down under one of the bimini top snaps.

  • Reaction score 0
  • Comments 0
5200 all cured up and tape removed

5200 all cured up and tape removed

  • Reaction score 0
  • Comments 0
5200 all cured up and tape removed

5200 all cured up and tape removed

  • Reaction score 0
  • Comments 0
5200 all cured up and tape removed.

5200 all cured up and tape removed.

  • Reaction score 0
  • Comments 0

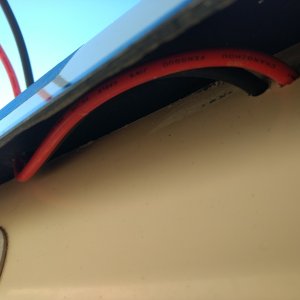

Here are the cables running up under the roof overhang.

Here are the cables running up under the roof overhang.

  • Reaction score 0
  • Comments 0

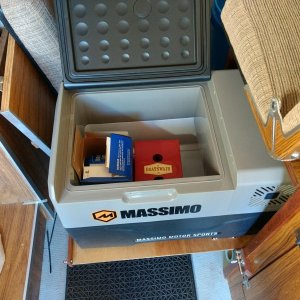

I've been running the fridge off the solar panel the past week with no issues. We even had 2 days in a row of clouds and rain and the battery never got below 12.32 resting voltage. And that was checking it first thing in the morning after running all night. I think this will work nicely.

I've been running the fridge off the solar panel the past week with no issues. We even had 2 days in a row of clouds and rain and the battery never got below 12.32 resting voltage. And that was checking it first thing in the morning after running all night. I think this will work nicely.

  • Reaction score 0
  • Comments 0

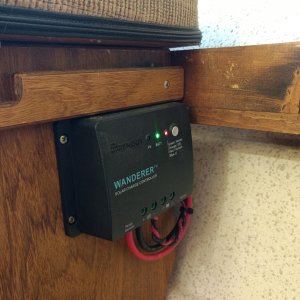

Down to the 30amp Renolgy Charge controller. I didn't get the fancy pants MPPT controller because everything I read said unless you have 200+ watts coming in they're really not necessary.

Down to the 30amp Renolgy Charge controller. I didn't get the fancy pants MPPT controller because everything I read said unless you have 200+ watts coming in they're really not necessary.

  • Reaction score 0
  • Comments 0
Here are the solar charging wires coming into the port/aft corner of the cabin.

Here are the solar charging wires coming into the port/aft corner of the cabin.

  • Reaction score 0
  • Comments 0

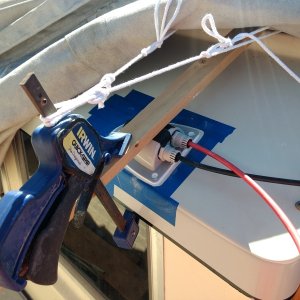

The gland had some screw holes for mounting but not wanting to penetrate the cabin roof some 3M 5200 and funky clamping should do the trick.

The gland had some screw holes for mounting but not wanting to penetrate the cabin roof some 3M 5200 and funky clamping should do the trick.

  • Reaction score 0
  • Comments 0

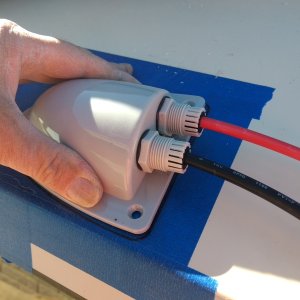

Cable entry gland.

Cable entry gland.

  • Reaction score 0
  • Comments 0

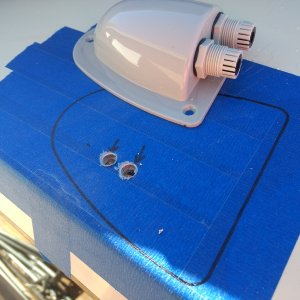

Solar cable entry glad. Cable holes are drilled between the outside cabin wall and the roof overhang. NO penetration into the cabin.

Solar cable entry glad. Cable holes are drilled between the outside cabin wall and the roof overhang. NO penetration into the cabin.

  • Reaction score 0
  • Comments 0

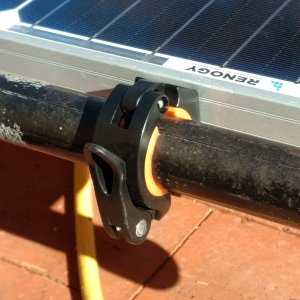

I used these cool little quick release clamps I found on Amazon. They're actually bicycle handlebar clamps to mount a flashlight. This makes it easy to swap the panel to the roof rack on the truck when we want to go out boonie crashing.

I used these cool little quick release clamps I found on Amazon. They're actually bicycle handlebar clamps to mount a flashlight. This makes it easy to swap the panel to the roof rack on the truck when we want to go out boonie crashing.

  • Reaction score 0
  • Comments 0
160 watt Renolgy solar panel mounted to the Desert Dory roof rack.

160 watt Renolgy solar panel mounted to the Desert Dory roof rack.

  • Reaction score 0
  • Comments 0
D

160 watt Renolgy solar panel mounted to the Desert Dory roof rack.
