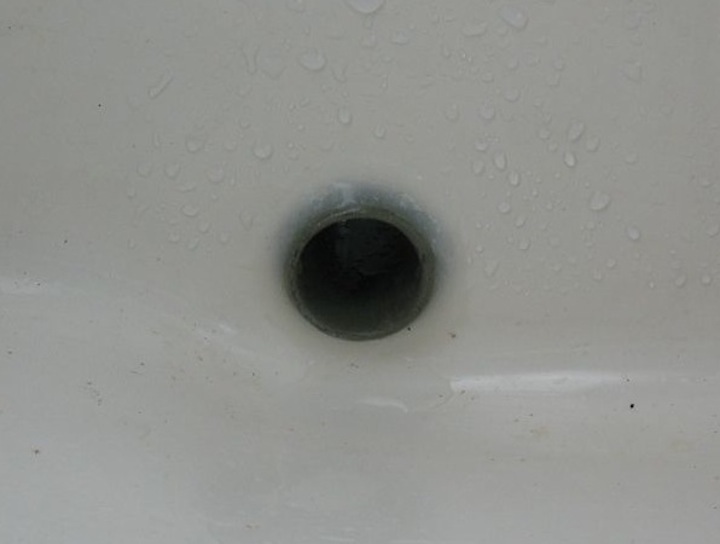

After a couple of days of curing I cut off the excess tube and rounded over the after side. Then I prepped both sides and ran a fillet around the outside of the tube. Next I'll sand it and I may trim it slightly shorter on this (splashwell) side. I'll let the fillets cure for a longer time before ultimately gelcoating things. Hmm, I'll have to add a photo of the after side too.

Here I have fiberglassed over the depression. I started with neat resin, then leveled the center with thickened epoxy (colloidial silica), and then added concentric layers of 10 oz. cloth. I added some peel ply (release cloth) over the top to smooth it - that's the "windbreakery" looking stuff you can see. You can see the "real" drain over to the left in the photo.

After removing the peel ply but before fairing, etc.

A perfectly circular crack in the the center (athwartships) of the splashwell gelcoat turned out to be a "phantom" drain that had been drilled for but then simply filled and gelcoated over, presumably at the builder or dealers. Subsequent conversation supplied me with the info that the center location was typically used for twins (my boat has two engines, but not twins). This type of "repair" (just filler and gelcoat) is destined to crack, which it had. I ground it back in a taper to prepare for adding fiberglass cloth. Actually here I had taken away too much of the fiberglass (pink bits) and so ultimately I increased the diameter and improved the taper (leaving more glass to bond to), but I don't have a photo of that. This gives the idea, anyway.

After a couple of days of curing I cut off the excess tube and rounded over the after side. Then I prepped both sides and ran a fillet around the outside of the tube. Next I'll sand it and I may trim it slightly shorter on this (splashwell) side. I'll let the fillets cure for a longer time before ultimately gelcoating things. Hmm, I'll have to add a photo of the after side too.

"Impalement patient" as the epoxy cures. I let it cure for a couple of days before trimming it.

The tube bonded in on the splashwell side. I inserted it from astern just to where I wanted it, and let it "run wild" on the outside, to be cut off later. This made it easier to work with than a just-right-sized tube.

Bringing the fill up to the proper thickness. After this I overfilled it a bit, and then "buttered" the tube so that it would "squooge" into place with plenty of epoxy all around.

S

After a couple of days of curing I cut off the excess tube and rounded over the after side. Then I prepped both sides and ran a fillet around the outside of the tube. Next I'll sand it and I may trim it slightly shorter on this (splashwell) side. I'll let the fillets cure for a longer time before ultimately gelcoating things. Hmm, I'll have to add a photo of the after side too.

Sunbeam
Jan 13, 2013
