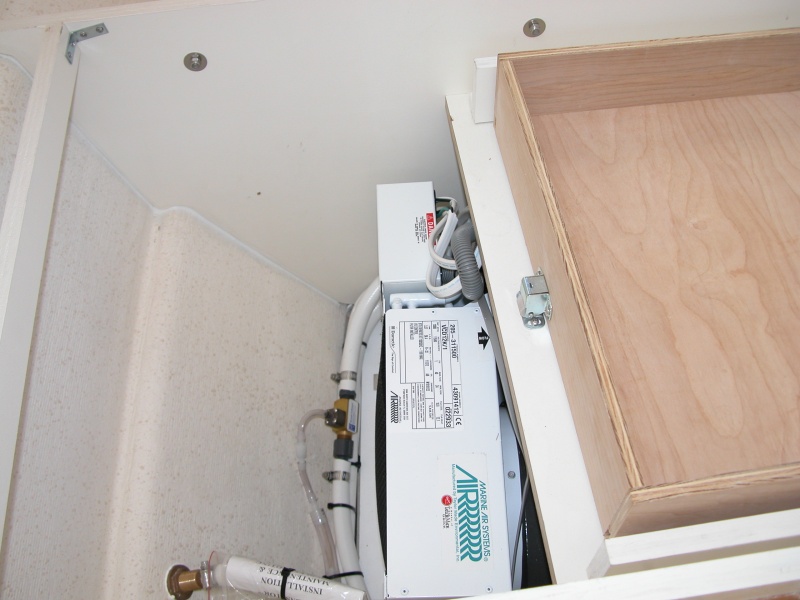

AC is located under mate's seat. The "T" in the cooling line is to drain the drip pan of any condensation buildup.
Next
Prev
Yellow handle cutoff to fresh water feed -brass coller before this valve is a oneway checkvalve.
2013-07-26 view of A/C and head thru-hulls with new fresh water flush setup. The large red handeled seacock valve is for the head. The small red handeled valve is for the system bleeder, for the circulating pump. The white handeled seacock valve is for the air conditioner. The yellow handeled valve is for the fresh water inlet to the air conditioner.
AC is located under mate's seat. The "T" in the cooling line is to drain the drip pan of any condensation buildup.
AC Vent
AC Vent above hanging closet
A closer look at Sea Angel's air conditioner water pump bleeder valve with its red handle closed. The circulation pump needs to be primed to work. It does not have to have power to be primed, if in the water. It is below the water line. Just open the bleeder valve to prime, then close to operate the A/C.
Sea Angel air conditioning plumbing with its raw water strainer, water pump,bleeder valve and white supply line to the condenser coil assy. The RULE bilge pump is for the shower drain and also as a secondary to the main.
