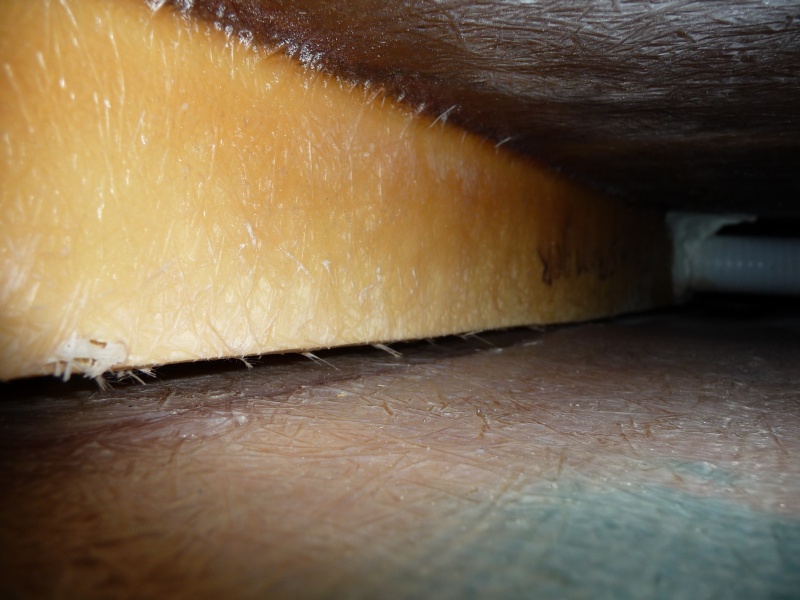

6. Looking forward along the side of the 1 1/2" x 1 1/2" cedar stiff arm or beam. Notice the white plastic pipe chase, which holds the water line and electrical lines crossing from starboard to port, to feed the galley area.
Next
Prev
9. Wires and water line on the starboard side, under the 2 drawers, under the Wallas Stove, feeding into the chase below the cockpit floor across to the stern end of the water tank on the port side.
8. Pipe chase coming from the starboard side under the 2 drawers, under Wallas Stove in the galley, across to the back of the water tank under the port seat/cabinet.
7. 1.5 by 1.5 inch cedar stiff arm or beam, wrapped with fiberglass. 3/8" - 1/2" air space all the way under the span of the beam.
6. Looking forward along the side of the 1 1/2" x 1 1/2" cedar stiff arm or beam. Notice the white plastic pipe chase, which holds the water line and electrical lines crossing from starboard to port, to feed the galley area.
5. Looking Directly Forward towards bulkhead under cabin door.
4. Looking directly back to transom. 1 1/2" x 1 1/2" cedar stiff arm or beam on right hand side of picture. Beam glassed on both sides, but not on bottom. 1/2" air space under beam.
3. Looking directly forward. The cedar stiff arm or beam on left side of picture spans from the bildge well at the stern, to the bulkhead under the cabin door.
