4x6x12' PT main bunks mounted just inside the outer edges of the 22' I have heard it is important that PT lumber NOT come in contact with aluminum. The bunks are covered with plastic slides though I left about 4' carpet only to get some friction. There are two short plastic covered composite bunks that help support the transom weight. 2 keel rollers forward.
Next
Prev
This is working out very well. It is so easy to put on and take off. Fasten the rear tie downs first, then this big guy tigtens both ends down tight (by pulling the front down, back up)and front end tight to both the bow stop and the front keel roller. You can just twist the shaft by hand until tight, then a crank or two on the handle. This is the ultimate turnbuckle. The item I used is called an SCC Quikbinder. I got mine at Tarpstop.com for 34.50 + ship. I'm sure it is avail. elsewhere. WL is 7100#.(35,500# avg. break) I think at that point it is probably stronger than the bow eye. I cut off the bottom hook with an angle grinder (wouldn't want this thing bouncing down the highway) Have gained enough confidence to consider adding the powerwinch 912 back on.
Underside how chain is attached to main trailer beam. Stainless screw on with dab of JB weld and padlock for security.
OOOPS INSPIRED: Added 7100Lb W/L heavy equipment ratchet chain binder (foldable handle) to tie down front end as second safety chain. Secured to bow post and main trailer beam with 1/2" galv. chain. Should not come up again (or forward) unless I lose the bow eye. Chain is linked under trailer with a full oval screw on connector and locked with a padlock as anti theft precaution. I'm not intending to put this in a thread until it has been well tested.
4x6x12' PT main bunks mounted just inside the outer edges of the 22' I have heard it is important that PT lumber NOT come in contact with aluminum. The bunks are covered with plastic slides though I left about 4' carpet only to get some friction. There are two short plastic covered composite bunks that help support the transom weight. 2 keel rollers forward.
Bought used 03 EZ Alum tandem to replace single axle. Refitting for CD. Sun canopy for working in the heat!
Next
C

4x6x12' PT main bunks mounted just inside the outer edges of the 22' I have heard it is important that PT lumber NOT come in contact with aluminum. The bunks are covered with plastic slides though I left about 4' carpet only to get some friction. There are two short plastic covered composite bunks that help support the transom weight. 2 keel rollers forward.

  • Media owner cemiii
  • Date added

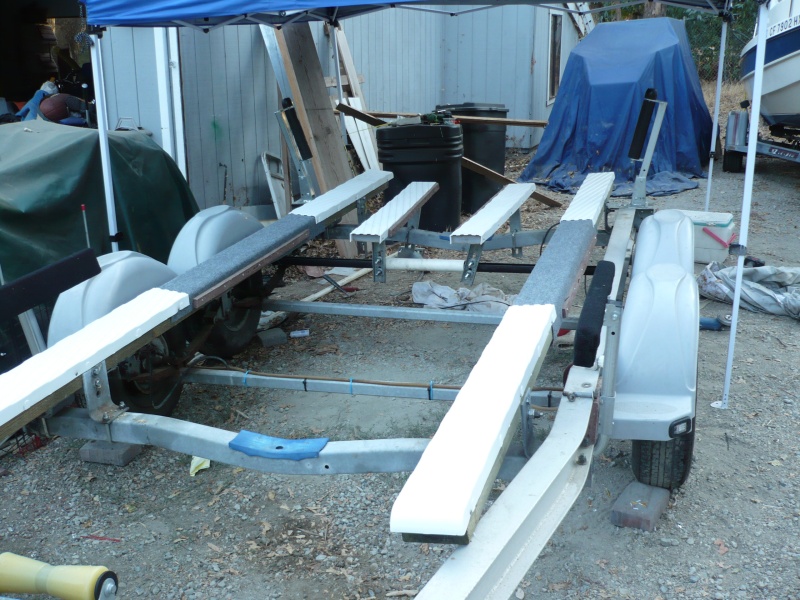

4x6x12' PT main bunks mounted just inside the outer edges of the 22' I have heard it is important that PT lumber NOT come in contact with aluminum. The bunks are covered with plastic slides though I left about 4' carpet only to get some friction.
There are two short plastic covered composite bunks that help support the transom weight. 2 keel rollers forward.
