2 WARNINGS: your thru hull drain must have a 3/4" downward slope to it or the scupper will hold water in when you wash the cockpit. Second if you drop the gasket in the water once it is a foot down you can not see it. In 3' of water I tied a string to the other gasket and dropped it in, all I could see was the knot in the string! I ordered a second one.
Next
Prev
The finial product sitting in the water.
The finial product sitting in the water. I purchased them from Dusky Sports Center, excellant service. I'll buy from them again.
2 WARNINGS: your thru hull drain must have a 3/4" downward slope to it or the scupper will hold water in when you wash the cockpit. Second if you drop the gasket in the water once it is a foot down you can not see it. In 3' of water I tied a string to the other gasket and dropped it in, all I could see was the knot in the string! I ordered a second one.

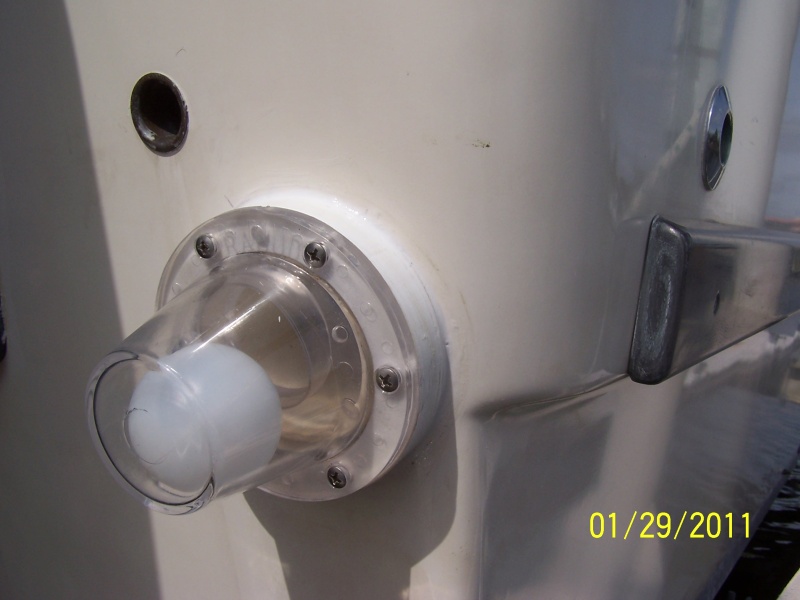

6 stainless steel screws, wipe the caulking off and you are done.
The scupper has a rectangle hole in it that goes down and the gasket that goes between the scupper and the spacer has a hole in it that the ball seats in and that hole goes up.
I premarked and drilled the holes and then caulked the perimeter and around each hole.
After removing the flapper the thru hull drain protruded outside about 5/8" and I didn't want to cut it off. So I ordered a 3/4" spacer (they also make a 1/2" spacer) to go on around the drain.
Next
C

2 WARNINGS: your thru hull drain must have a 3/4" downward slope to it or the scupper will hold water in when you wash the cockpit. Second if you drop the gasket in the water once it is a foot down you can not see it. In 3' of water I tied a string to the other gasket and dropped it in, all I could see was the knot in the string! I ordered a second one.

2 WARNINGS:

your thru hull drain must have a 3/4" downward slope to it or the scupper will hold water in when you wash the cockpit. Second if you drop the gasket in the water once it is a foot down you can not see it. In 3' of water I tied a string to the other gasket and dropped it in, all I could see was the knot in the string! I ordered a second one.
Click to expand...
There are no comments to display.

Media information

Category
Rabud ball scuppers
Album
The old rubber flappers had warped allowing water back into the cockpit area, so I decided to replace them with Rabud ball scuppers.
