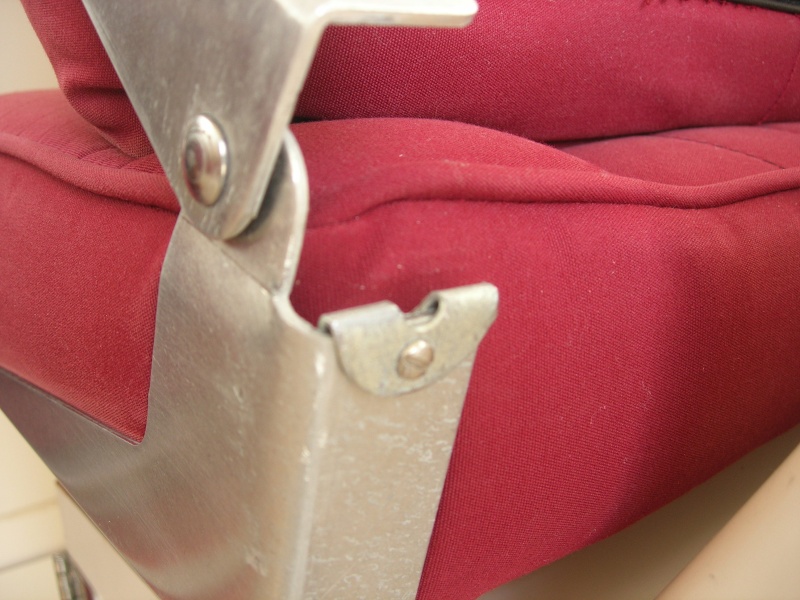

1" washer folded in half and set on to seat frame. #4 screw used to secure it. Seatback will now be in a more upright position offering better support.

No foam had to be removed, just smoothed a bit.

New 12x24" storage hatch in v-berth. Hatch cover made by T-H Marine.

Another view of the washer and seat back position. As needed a 2nd washer can be used on the seat back frame to position it even farther forward. I have made spares for this purpose that I just set in place as desired. In this photo you can also see the new support frame which raised the seat an additional 1 inch - giving better view when piloting.

1" washer folded in half and set on to seat frame. #4 screw used to secure it. Seatback will now be in a more upright position offering better support.

Generator in place and ready to run. Security wire or chain is run through rod holder and locked so it cannot be pulled out.

Platform set on, with the brass screws (tops removed)used to hold the platform in place. All 3 pieces are completely separate which allows for easy setup, removal, and storage. Nothing is attached to or screwed into the boat.

2x4 supports for generator platform with brass screws, tops removed

M

1" washer folded in half and set on to seat frame. #4 screw used to secure it. Seatback will now be in a more upright position offering better support.
