Instrument lighting
Goto page 1, 2  Next

Post new topic   Reply to topic    The C-Brats Forum Index -> Cabin, Interior
View previous topic :: View next topic
Author Message
Greatlakesboater



Joined: 26 Aug 2013
Posts: 9
City/Region: Great Lakes
State or Province: WI
C-Dory Year: 2003
C-Dory Model: 22 Cruiser
Vessel Name: Encore
PostPosted: Wed Sep 10, 2014 3:12 pm    Post subject: Instrument lighting Reply with quote

As a new C-Dory owner, I have noticed that there is no instrument lighting for night time navigation on my boat. Of course, there isn't much instrumentation and you experienced boaters probably rely on the engine sounds rather than the rpm gauges or the trim meters (which aren't very reliable anyway). But just out of curiosity has anyone come up with a lighting alternative that doesn't interfere with night vision ?

This is a great website for we new owners and thanks to Joe of SeaWolf for responding to a previous question!
Back to top
View user's profile Send private message
mgarr682



Joined: 29 Sep 2012
Posts: 182
City/Region: Asheville
State or Province: NC
C-Dory Year: 2013
C-Dory Model: 22 Angler
Vessel Name: Glenda Jean
Photos: Glenda Jean
PostPosted: Wed Sep 10, 2014 3:35 pm    Post subject: Reply with quote

Have you checked to see if your instruments have lights? Most instrument manufacturers have included lights in their instruments for several years now. Or you might find that they are not wired correctly. Mine (2013) came from the factory wired such that the instrument lights were on when the anchor light was switched on but off when the navigation lights were on. A jumper on the back of the switch was connected to the wrong terminals on the switch.
_________________
Mike Garrett

Back to top
View user's profile Send private message
Sea Wolf



Joined: 01 Nov 2003
Posts: 8650
City/Region: Redding
State or Province: CA
C-Dory Year: 1987
C-Dory Model: 22 Cruiser
Vessel Name: Sea Wolf
Photos: Sea Wolf
PostPosted: Wed Sep 10, 2014 3:52 pm    Post subject: Reply with quote

Greatlakesboater-

Here are two posts related to your questions:


navigation lights question

and

Cockpit Projects - CD 22

Joe. Teeth Thumbs Up

_________________
Sea Wolf, C-Brat #31
Lake Shasta, California

"Most of my money I spent on boats and women. The rest I squandered'. " -Annonymous
Back to top
View user's profile Send private message Send e-mail
Darkwater



Joined: 12 Feb 2008
Posts: 58
City/Region: Fort Bragg
State or Province: CA
C-Dory Year: 2008
C-Dory Model: 22 Cruiser
Photos: Darkwater
PostPosted: Wed Sep 10, 2014 4:10 pm    Post subject: Reply with quote

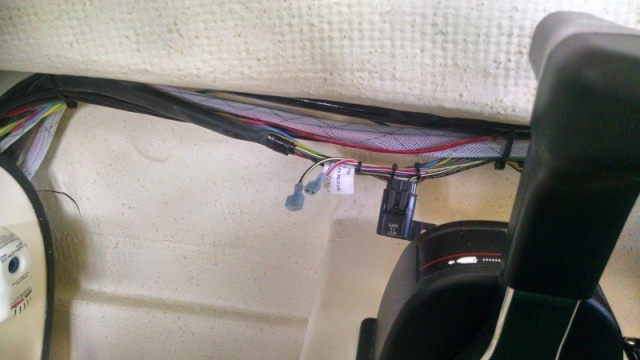

Is your engine a Honda? My 2008 CD22 apparently has no power to the instrument lights. From the wiring diagram in my BF90D manual, I think the two small terminals on the wiring harness are the connection, though I have not yet tried connecting them for fear of damage. I had to cut a couple small tie wraps on the harness to free these connectors. When I hook up the instrument lights I would like a rheostat in the circuit but don't know if that is possible...

_________________
Darkwater Doug
Fort Bragg, Calif
Boat and fishing obsessed...
C-Ray 230DA sold Aug 2013
Retired Dec 2013
2008 C-Dory 22 Cruiser (unnamed) Jun 2014
Back to top
View user's profile Send private message
colbysmith



Joined: 02 Oct 2011
Posts: 4523
City/Region: Madison
State or Province: WI
C-Dory Year: 2009
C-Dory Model: 25 Cruiser
Vessel Name: C-Traveler
Photos: C-Traveler and Midnight-Flyer
PostPosted: Wed Sep 10, 2014 5:10 pm    Post subject: Reply with quote

I only have instrument lights on my CD-22, when the nav lights are turned on. I'd like to see lighted switches!
Back to top
View user's profile Send private message Send e-mail Visit poster's website
ssobol



Joined: 27 Oct 2012
Posts: 3362
City/Region: SW Michigan
State or Province: MI
C-Dory Year: 2008
C-Dory Model: 22 Cruiser
Vessel Name: SoBELLE
Photos: SoBelle
PostPosted: Wed Sep 10, 2014 5:11 pm    Post subject: Reply with quote

When I bought my CD22 with the Honda digital RPM gauge the instrument light was not working. I found the instrument light was not hooked up. I can't remember if the solution was to hook two of the existing connectors together or connect one to 12vdc. Either way it was a 5 minute fix and that included time looking at the wiring schematic in the Honda owner's manual.

It was very easy to do.

The light in the RPM gauge is not that bright. A rheostat is not required (or would be on max all the time). The Yamaha gauges on my previous boat were much brighter and some people might have liked a dimmer. I didn't use the boat that much at night so it wasn't that big a deal to me.


Last edited by ssobol on Wed Sep 10, 2014 5:16 pm; edited 1 time in total
Back to top
View user's profile Send private message
ssobol



Joined: 27 Oct 2012
Posts: 3362
City/Region: SW Michigan
State or Province: MI
C-Dory Year: 2008
C-Dory Model: 22 Cruiser
Vessel Name: SoBELLE
Photos: SoBelle
PostPosted: Wed Sep 10, 2014 5:13 pm    Post subject: Reply with quote

colbysmith wrote:
I only have instrument lights on my CD-22, when the nav lights are turned on. I'd like to see lighted switches!


I would like it if the main switch panel on the console was backlit to see the switch labels.
Back to top
View user's profile Send private message
Greatlakesboater



Joined: 26 Aug 2013
Posts: 9
City/Region: Great Lakes
State or Province: WI
C-Dory Year: 2003
C-Dory Model: 22 Cruiser
Vessel Name: Encore
PostPosted: Wed Sep 10, 2014 5:39 pm    Post subject: Instrument lighting Reply with quote

Thanks for the suggestions, guys. Does anyone know when C-Dory first used instrument lighting. I ask because mine is an older model (2003) and I'm wondering whether backlighting on the instruments was added later. I have tried the nav and anchor lights and neither seems to activate instrument lighting. Maybe that's because there weren't any on the older models or maybe it's because I haven't figured out the wiring yet.
Back to top
View user's profile Send private message
ssobol



Joined: 27 Oct 2012
Posts: 3362
City/Region: SW Michigan
State or Province: MI
C-Dory Year: 2008
C-Dory Model: 22 Cruiser
Vessel Name: SoBELLE
Photos: SoBelle
PostPosted: Wed Sep 10, 2014 6:40 pm    Post subject: Reply with quote

In my case the Honda RPM gauge lighting is on all the time the ignition switch is on (I think). In the daytime you can't see it. The light is internal to the instrument and it comes that way. I guess you could hook up the light input to your nav light switch.
Back to top
View user's profile Send private message
Not For Hire



Joined: 20 May 2004
Posts: 347
City/Region: Cadillac, MI
State or Province: MI
C-Dory Year: 2004
C-Dory Model: 22 Cruiser
Vessel Name: Not For Hire
Photos: Not For Hire
PostPosted: Thu Sep 11, 2014 6:31 am    Post subject: Reply with quote

Dear GLB,
The instrument lighting is from the manufacturer of the instruments, not somethng C-Dory does. Now C-Dory, or someone else in the last ten years, could have mixed up the wiring. With Honda instruments the tachometer and the tilt switch of that vintage should be lit when the nav lights are switched on. What engine(s) do you have? Someone with the same engine setup could give you some advice. No doubt the cabability to be lit is there.

Regards, Mark

_________________
Mark S
Cadillac, Michigan
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Greatlakesboater



Joined: 26 Aug 2013
Posts: 9
City/Region: Great Lakes
State or Province: WI
C-Dory Year: 2003
C-Dory Model: 22 Cruiser
Vessel Name: Encore
PostPosted: Thu Sep 11, 2014 10:07 am    Post subject: Instrument lighting Reply with quote

Mark, thanks for the suggestion. My engines are Honda 40s. I am encouraged by your suggestion that the problem may be wiring rather than an absence of backlighting on the gauges themselves. Do you or anyone else have any further suggestion on what to look for in the way they are wired ?
Back to top
View user's profile Send private message
Not For Hire



Joined: 20 May 2004
Posts: 347
City/Region: Cadillac, MI
State or Province: MI
C-Dory Year: 2004
C-Dory Model: 22 Cruiser
Vessel Name: Not For Hire
Photos: Not For Hire
PostPosted: Thu Sep 11, 2014 12:01 pm    Post subject: Reply with quote

The Honda Manual (for 2004 40hp engines) shows two wires coming from the instrument cluster pair (a pair is one tach and one trim gauge). The wires are Red/White and Black/White. It is possible that the wires from each pair (since you have two engines) are wired together near the instruments and then a single set of two wires down to the switches.

Your nav light switch and your anchor light switch have a jumper (I think this is called a diode jumper, one way street) between them. That way the anchor light goes on when nav lights are turned on, but not vice versa.

Whats a matter, getting dark a little early over there? Wink

Mark
Back to top
View user's profile Send private message Send e-mail Visit poster's website
RonJr



Joined: 28 Jun 2007
Posts: 78
City/Region: Olympia
State or Province: WA
Photos: Beagle
PostPosted: Thu Sep 11, 2014 12:43 pm    Post subject: Reply with quote

The manual for my 16 cruiser says:

If you would like your motor instrument lights to come on with your running lights, attach the instrument light's wire to the running light switch. You can do the same for your compass light.

On my 16 ( with a Honda 50) I have red/white wires from the tach, trim gage, and volt gage, as well as a black wire from the compass, attached to the running light switch (center pull).

_________________
Ron & Rose
1987 22 Cruiser - sold 2012
2006 16 Cruiser - sold 2015
Back to top
View user's profile Send private message Send e-mail
Greatlakesboater



Joined: 26 Aug 2013
Posts: 9
City/Region: Great Lakes
State or Province: WI
C-Dory Year: 2003
C-Dory Model: 22 Cruiser
Vessel Name: Encore
PostPosted: Thu Sep 11, 2014 2:39 pm    Post subject: Instrument lighting Reply with quote

Mark and Ron, thanks for the replies. Mark, you seem to be describing how the instruments are wired to the switches but that doesn't resolve my problem with the lighting of the instruments. On your 2004 Hondas are the tach and trim meters backlit with the nav lights on ? On my 2003, with the nav lights the instruments are not backlit. Should I be looking for additional wiring other than what you and Ron have described ?

Ron, you specifically describe an "instrument light" wire. Is that the red/white wire you both describe ? Or does the red/white wire from the tach gauge provide power to both the gauge and the lighting inside of it ? If so, then it seems that for some reason I'm getting power to the gauge but without any lighting.

Once I get a handle on this I'll run over to the marina and check out the wiring I have.
Thanks again.
Back to top
View user's profile Send private message
ssobol



Joined: 27 Oct 2012
Posts: 3362
City/Region: SW Michigan
State or Province: MI
C-Dory Year: 2008
C-Dory Model: 22 Cruiser
Vessel Name: SoBELLE
Photos: SoBelle
PostPosted: Thu Sep 11, 2014 2:39 pm    Post subject: Reply with quote

RonJr wrote:
The manual for my 16 cruiser says:

If you would like your motor instrument lights to come on with your running lights, attach the instrument light's wire to the running light switch. You can do the same for your compass light.

On my 16 ( with a Honda 50) I have red/white wires from the tach, trim gage, and volt gage, as well as a black wire from the compass, attached to the running light switch (center pull).


Didn't think about my compass. It does not light up. Might have to see about hooking it up.

However, I rarely use it because of the GPS. I was sort of thinking of taking it out.
