PostPosted: Mon Aug 10, 2020 9:25 pm    Post subject: NMEA networking between chartplotter and radio Reply with quote

I thought I'd share my experience getting a Garmin chart plotter (ECHOMAP Plus 64cv) and Standard Horizon VHF (Standard Horizon GX2400) to talk to each other via NMEA, in the hopes it might save someone else some time.

I started by networking the two devices with a NMEA 2000 backbone kit from Ancor Marine, but neither device would see each other.

I called Standard Horizon support, who did the best they could given the situation... from their perspective, it could have been their radio... or the chart plotter, the backbone, lack of power to the backbone... or some other form of user user. In the end, things still weren't working.

I next called Garmin Marine support. Over the course of an hour-long call, the support person suggested a NMEA 0138 workaround (VHF blue -> chart plotter brown, high-speed), and suggested that I try a Garmin NMEA 2000 backbone kit to see if that would make a difference.

So I ordered the Garmin NMEA 2000 backbone, and it did work. Both devices see each other. I'm seeing AIS targets on the chart plotter, for instance.

One would think that one "standard" N2K network backbone would work just as well as the next, but unfortunately, that doesn't appear to be the case.

Unfortunately, I ran out of time with the boat and so was unable to swap out components (tee connectors, power injector, terminators) to narrow down the failure, which would have been an interesting experiment.

If anyone has ideas about what may have been the trouble here, would be interested in hearing/learning now. I'm new at this.

Thanks!

PS: props to Garmin marine technical support!

References:

Back to top
View user's profile Send private message
thataway



Joined: 02 Nov 2003
Posts: 19934
City/Region: Pensacola
State or Province: FL
C-Dory Year: 2007
C-Dory Model: 25 Cruiser
Vessel Name: thataway
Photos: Thataway
PostPosted: Tue Aug 11, 2020 12:23 pm    Post subject: Reply with quote

Great on getting the systems to work together. Unfortunately not all "MNEA 2000" systems are the same. That was what the "Standard" was set for. But there are small differences which often make them incompatible . Been there and done that..with failures to "read" and "talk" between different brands.
_________________
Bob Austin
Thataway
Thataway (Ex Seaweed) 2007 25 C Dory May 2018 to Oct. 2021
Thisaway 2006 22' CDory November 2011 to May 2018
Caracal 18 140 Suzuki 2007 to present
Thataway TomCat 255 150 Suzukis June 2006 thru August 2011
C Pelican; 1992, 22 Cruiser, 2002 thru 2006
Frequent Sea; 2003 C D 25, 2007 thru 2009
KA6PKB
Home port: Pensacola FL
Back to top
View user's profile Send private message Send e-mail
journey on



Joined: 03 Mar 2005
Posts: 3560
City/Region: Valley Centre
State or Province: CA
C-Dory Year: 2005
C-Dory Model: 25 Cruiser
Vessel Name: journey on
Photos: Journey On
PostPosted: Tue Aug 11, 2020 1:02 pm    Post subject: Reply with quote

I've set up a nmea 2000 net on Journey On. I'm not sure, but I'd bet that everything I added was passive: wires,resistors, etc. So I accept the fact that mixing different network components doesn't work but I'm not sure why, since the interconnections are only wires and terminating resistors. The line drivers and receivers are in the device. It looks like someone tried to cut costs with simple things (wires) that didn't meet specs. If the geniuses here have a better answer, I'd love to hear it.

I would agree that one should buy the networking components that are the same brand as the devices you're trying to connect, or as close as possible. If they don't work at least you're dealing with only one brand of customer service.

Boris
Back to top
View user's profile Send private message Visit poster's website
thataway



Joined: 02 Nov 2003
Posts: 19934
City/Region: Pensacola
State or Province: FL
C-Dory Year: 2007
C-Dory Model: 25 Cruiser
Vessel Name: thataway
Photos: Thataway
PostPosted: Tue Aug 11, 2020 10:23 pm    Post subject: Reply with quote

Quote:
If the geniuses here have a better answer, I'd love to hear it.


Not a geniuses. But my understanding it is proprietary sentencing which may not be recognized. I had the same problem with NMEA 0183 with Furuno and Signet Marine, Both blamed the other--I finally did a work around, and never did get a couple of pieces of information to read out on the displays. I wanted read outs of all of the information: wind speed, wind direction, boat speed made good to way point, compass heading all in a small instrument above the bunk, So I could monitor all functions as we ran at night and I awoke off watch and know instantly if we had a change in conditions and course/speed.
Back to top
View user's profile Send private message Send e-mail
hardee



Joined: 30 Oct 2006
Posts: 12569
City/Region: Sequim
State or Province: WA
C-Dory Year: 2005
C-Dory Model: 22 Cruiser
Vessel Name: Sleepy-C
Photos: SleepyC
PostPosted: Wed Aug 12, 2020 1:10 am    Post subject: Reply with quote

I have a total mix of brands, ICOM, RayMarine, Standard Horizon VHF's and a RayMarine Plotter, and RayMarine Auto Pilot. Also a Vesper Marine AIS transponder. They all talk together and show on the RayMarine 12 inch plotter but that is all done via a "Multiplexor". These were all in place prior to NMEA2000 came along. Rodger's Marine Electronics in Portland made it all work. Great place, good folks and always helpful.

Harvey
SleepyC Moon


_________________
Though in our sleep we are not conscious of our activity or surroundings, we should not, in our wakefulness, be unconscious of our sleep.
Back to top
View user's profile Send private message
croakz



Joined: 21 Sep 2020
Posts: 100
City/Region: Seattle
State or Province: WA
C-Dory Year: 1997
C-Dory Model: 22 Angler
Vessel Name: Jolly Blue
Photos: Jolly Blue
PostPosted: Tue Oct 20, 2020 10:38 pm    Post subject: Reply with quote

Hey Steve,

How do you like the SH GX2400? Did you consider any other VHFs? Thanks.

- tom
Back to top
View user's profile Send private message
Steve-in-SEA



Joined: 29 Mar 2019
Posts: 13
City/Region: Seattle
State or Province: WA
C-Dory Year: 2004
C-Dory Model: 16 Angler
Vessel Name: Behemoth (for now)
Photos: Behemoth
PostPosted: Wed Oct 21, 2020 10:28 pm    Post subject: Reply with quote

Hi Tom -

I like the radio a lot, but you should note that I'm still new to boating, and that I've only had the radio on the water a few times (with boat under it Wink.

Some specifics:

- It fits pretty well (for me) below and to the right of the wheel in my C-Dory 16. (There's a photo showing this in the gallery for "Behemoth" in my profile).

- Overall volume seems adequate. Note that the microphone also features a small speaker. I mounted the microphone holder at window level; being that much closer to my ear, it helps me hear it when the motor is at speed w/o needing to keep the volume too high on the main speaker.

- The AIS feature is nice. It's fun to be able to learn about nearby AIS-transmitting boats... distance, bearing, speed. I haven't had the need to use the ability to direct-call feature any of those boats just yet Wink. The display/menu/button arrangement is good enough for this kind of use.

- As noted earlier in this thread, I also have it N2K'd to the Garmin Chartplotter, and the AIS integration on that unit's larger screen is nice. But, to be honest, I find myself using the AIS function on the radio's screen at least 50% of the time (say, because I don't want to mess with a plot that's active on the Chartplotter, etc).

- The radio is mated to a Morad VHF-156HD antenna, based on good advice I read elsewhere on these forums. The antenna is mounted front and center atop the cabin, just behind the navigation light, on a swivel mount so that I can fold it down. The combo seems to work well, pulling in what *seems* like distant radio chatter. I don't have much of a feel just yet about how far it can transmit, though.

- You get used to the menu system. There are enough actual buttons to get you around the features/settings efficiently enough.

That's all that comes to mind now... if you have specific questions, I'd be happy to try to answer them...

Thanks!
Back to top
View user's profile Send private message
Marco Flamingo



Joined: 09 Jul 2015
Posts: 1106
City/Region: Seattle
State or Province: WA
C-Dory Year: 2004
C-Dory Model: 16 Cruiser
Vessel Name: Limpet
Photos: Limpet
PostPosted: Thu Oct 22, 2020 6:41 pm    Post subject: Reply with quote

I have been contemplating a new Standard Horizon radio to connect to a Garmin Multi Function Display. My 1989 ICON radio is so old that I don't know if I could even sell it on Ebay. The various features on new radios, mainly safety features, make upgrading the radio a no-brainer.

I've seen a few places where people have had difficulty connecting NMEA 2000 items to a Garmin without using the Garmin backbone. Kind of defeats the intended purpose but apparently there is no market place down side to Garmin having a kind-of sort-of proprietary backbone. It is a little irksome and feels like they are taking advantage.

The SH GX2400 radio appears to be the same as the SH GX2200 (which I have on the Limpet) with only the addition of being able to connect to NMEA 2000 (the GX2200 is only NMEA 0183). For the convenience of NMEA 2000, you pay $50. Then, instead of a standard $75 backbone, you pay an additional $10 for the Garmin product. So $125 for the convenience of plug and play (hopefully) instead of making electrical connections for maybe four wires. Again, feels like they are taking advantage.

Right now, I'm thinking of staying with NMEA 0183. If I were trying to merge other gadgets, I might think about NMEA 2000. The only gadget that comes to mind is an AIS transponder. I'm still not sure about that one.

Mark
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
gulfcoast john



Joined: 14 Dec 2012
Posts: 881
City/Region: PENSACOLA
State or Province: FL
C-Dory Year: 2010
C-Dory Model: 255 Tomcat
Vessel Name: Cat O' Mine
Photos: CAT O' MINE
PostPosted: Thu Oct 22, 2020 7:15 pm    Post subject: Reply with quote

Mark,
Here's the Garmin backbone for $75.60 with free shipping from BOEMarine.

https://www.boemarine.com/catalogsearch/result/?q=garmin+starter+kit


I've become even more of a Garmin fan after my radar mount broke off while trailering, sending the entire out of warranty HDX24 dome crashing onto the boat roof, then over the side, bouncing down 200 miles of I-65 right shoulder, held on only by the network and power connectors. (What if they were 0183? ha, ha!).

I didn't have much hope, but when I put it on the new mount, it spun right up and works perfect!

How many other boaters have that experience with their delicate radar magnetrons?

What kind of $10 connectors would you be willing to pay for, if the stuff really hits your fan while boating?

I would invest in Garmin N2k for the future AIS, and future proof.

Put the ICOM on EBay, it's cheap. Some guy in CA paid me $700 for an ancient Garmin 4212 that I paid $750 for 5 years prior. I got $1,250 for an Adcom 750 preamp that I paid $750 for in 1997 (replaced it with a Yamaha receiver, of course!) You never know, but it's cheap to list for 10 days.

Best,
John

_________________
John and Eileen Highsmith
2010 Tom Cat 255, Cat O' Mine
Yamaha F150, LXF150
Back to top
View user's profile Send private message Send e-mail
zuunami



Joined: 10 Aug 2021
Posts: 206
City/Region: Fort Bragg
State or Province: CA
C-Dory Year: 2006
C-Dory Model: 16 Cruiser
Vessel Name: Oh Buoy!
Photos: zuunami
PostPosted: Thu Aug 04, 2022 9:25 pm    Post subject: Reply with quote

Getting ready to install a Garmin 94sv chartplotter with nmea 2000, and a SH gx2400 vhf with ais, also nmea 2000. I've been searching the internet trying to understand what a nmea network/backbone is, and I kept thinking I was missing some middle unit, or module, or something. Instead, it appears to just be a number of cables (like what appears in a nmea starter kit online).

Please excuse my ignorance, but am I right? I'm familiar with computer systems, which usually have some sort of interface between devices? Anyway...

If it's just cables, seems like a no brainer, especially if you want to later add motor sensors, etc. Anyway, looking for confirmation - thanks!

Wonder when wireless will kick in and eliminate some cables Smile

_________________
Karen W. and Robert R.- Fort Bragg, CA - Oh Buoy!
Back to top
View user's profile Send private message Send e-mail AIM Address
jkidd



Joined: 23 Oct 2006
Posts: 1502
City/Region: Northern, Utah
State or Province: UT
C-Dory Year: 2007
C-Dory Model: 22 Cruiser
Vessel Name: Voyager
Photos: Voyager (JK)
PostPosted: Thu Aug 04, 2022 11:22 pm    Post subject: Reply with quote

zuunami wrote:
Getting ready to install a Garmin 94sv chartplotter with nmea 2000, and a SH gx2400 vhf with ais, also nmea 2000. I've been searching the internet trying to understand what a nmea network/backbone is, and I kept thinking I was missing some middle unit, or module, or something. Instead, it appears to just be a number of cables (like what appears in a nmea starter kit online).

Please excuse my ignorance, but am I right? I'm familiar with computer systems, which usually have some sort of interface between devices? Anyway...

If it's just cables, seems like a no brainer, especially if you want to later add motor sensors, etc. Anyway, looking for confirmation - thanks!

Wonder when wireless will kick in and eliminate some cables Smile




Nmea 2000 is a very simple and solid way for devices to talk to each other. It is a standard that uses sentences that manufactures share. However manufactures can use there own custom sentences that other manufactures equipment wouldn't understand and would ignored. Wireless systems would be more problematic and less reliable just as they are in the computer industry.

_________________
Jody Kidd
KE7WNG
Northern, Utah

Back to top
View user's profile Send private message Send e-mail
zuunami



Joined: 10 Aug 2021
Posts: 206
City/Region: Fort Bragg
State or Province: CA
C-Dory Year: 2006
C-Dory Model: 16 Cruiser
Vessel Name: Oh Buoy!
Photos: zuunami
PostPosted: Fri Aug 05, 2022 12:05 am    Post subject: Reply with quote

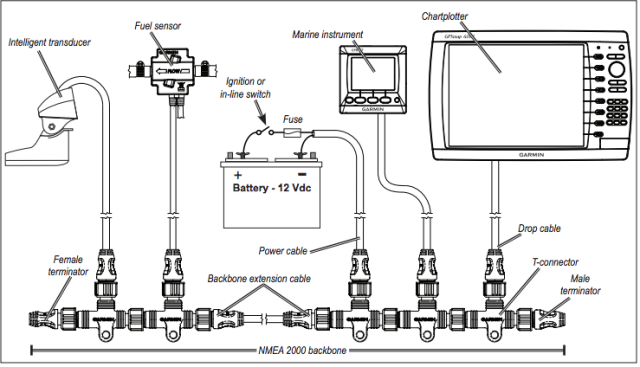

thanks so much Jody for the perfect diagram. I guess it's just simpler than I expected it to be Smile Still not sure why those cables need a separate power source from the devices, but that's ok Smile

i understand from a video I saw that the power cable needs to be as close to the middle of the array as possible -- wonder why this diagram shows an extension cable in the middle?

by the way, I agree about wireless, I have all of our computers wired, such a better connection - just wishful thinking Smile

Once again, thanks so much!
Back to top
View user's profile Send private message Send e-mail AIM Address
jkidd



Joined: 23 Oct 2006
Posts: 1502
City/Region: Northern, Utah
State or Province: UT
C-Dory Year: 2007
C-Dory Model: 22 Cruiser
Vessel Name: Voyager
Photos: Voyager (JK)
PostPosted: Fri Aug 05, 2022 12:20 am    Post subject: Reply with quote

zuunami wrote:
thanks so much Jody for the perfect diagram. I guess it's just simpler than I expected it to be Smile Still not sure why those cables need a separate power source from the devices, but that's ok Smile

i understand from a video I saw that the power cable needs to be as close to the middle of the array as possible -- wonder why this diagram shows an extension cable in the middle?

by the way, I agree about wireless, I have all of our computers wired, such a better connection - just wishful thinking Smile

Once again, thanks so much!


Normally you would have a terminator at the stern of the boat with some tees and what ever devices would go back there. Then the extension would run to the helm and what ever tees and devices in that area and then the other terminator. My power for the network is at the helm. You could have one terminator at the Stern and the other at the bow and then devices all along the backbone. Right now my whole network is behind the helm with both terminators. Easy to change and modify.
Back to top
View user's profile Send private message Send e-mail
ssobol



Joined: 27 Oct 2012
Posts: 2945
City/Region: SW Michigan
State or Province: MI
C-Dory Year: 2008
C-Dory Model: 22 Cruiser
Vessel Name: SoBELLE
Photos: SoBelle
PostPosted: Fri Aug 05, 2022 9:29 am    Post subject: Reply with quote

It is suggested that the power tap be in the middle of the network. However, this applies more for larger, longer networks. In a C-Dory there is usually not that many NMEA devices nor are the cable runs that long. On my boat, the power tap is one one end of the string and a terminator on the other. Works fine.
Back to top
View user's profile Send private message
colbysmith



Joined: 02 Oct 2011
Posts: 3888
City/Region: Madison
State or Province: WI
C-Dory Year: 2009
C-Dory Model: 25 Cruiser
Vessel Name: C-Traveler
Photos: C-Traveler and Midnight-Flyer
PostPosted: Fri Aug 05, 2022 10:35 am    Post subject: Reply with quote

Quote:
However manufactures can use there own custom sentences that other manufactures equipment wouldn't understand and would ignored.


I think that photo of the NMEA 2000 system Jody uploaded is a great explanation of the system, although very simplistic. There can be longer runs of cable (extension cable as you called it) between the numerous connection points. That extension is referred to as the backbone. Then there are the cables that run between the connectors and the various equipment. As far as the cable itself, I have found that Garmin, Lowrance, and many others use the same cabling. Rather or not they can communicate with each other may or may not be an issue. However, Ray Marine does have it's own system, called SeaTalk. That cabling IS different! And does require adapters when intermixed with other manufacturers. I guess they feel the need to be different from most the others... Sad I too wonder why the need for the power supply on the system, but I do have at least one item on it that requires powering only from the NMEA2000 and perhaps other equipment on the line does not provide the necessary power. As with a lot of electronics, the acronym PFM, explains it for me. Mr. Green Colby
